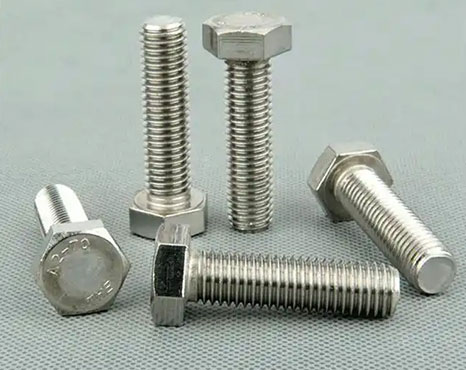

Inconel 600 Fasteners

Inconel 600 Fasteners are manufactured from a nickel-chromium alloy that offers excellent resistance to oxidation, corrosion, and high-temperature environments. They provide reliable mechanical strength and dimensional stability when exposed to heat, steam, alkaline solutions, and a wide range of corrosive media.
Inconel 600 bolts, nuts, screws, studs, and washers are widely used in chemical processing, heat treatment equipment, nuclear power, aerospace, and furnace applications. Their excellent durability and resistance to stress corrosion cracking make them a dependable choice for critical fastening systems operating under demanding conditions.











Request Quote View Specifications
Product Overview

Inconel 600 Fasteners for High-Performance Applications

Explore detailed information for this alloy product, including specifications, applications, supply options and quotation requirements.

Why buyers choose Inconel 600 Fasteners

Inconel 600 Fasteners are manufactured from a nickel-chromium alloy that offers excellent resistance to oxidation, corrosion, and high-temperature environments. They provide reliable mechanical strength and dimensional stability when exposed to heat, steam, alkaline solutions, and a wide range of corrosive media.
Inconel 600 bolts, nuts, screws, studs, and washers are widely used in chemical processing, heat treatment equipment, nuclear power, aerospace, and furnace applications. Their excellent durability and resistance to stress corrosion cracking make them a dependable choice for critical fastening systems operating under demanding conditions.











Inconel 600 Fasteners
Pipe Specifications

Inconel 600 Fasteners size range and supply information

Specifications, available sizes and delivery conditions can vary by production route and order requirements. Contact us for current availability.

Item Typical Options Buyer Notes Typical Specification
Material Grade Inconel 600 / UNS N06600 / W.Nr. 2.4816 Confirm the alloy designation, chemical composition and certification requirements. Nickel-chromium alloy with good oxidation and high-temperature resistance
Fastener Type Hex bolts, heavy hex bolts, studs, threaded rods, nuts, washers or screws Specify the required fastener type, thread form and assembly configuration. Bolting assemblies for high-temperature and corrosive applications
Size & Thread Metric, UNC, UNF, BSW or custom thread Provide nominal diameter, thread pitch and dimensional tolerances. Standard and custom sizes available according to drawings
Applicable Standard ASTM B166, ASTM B167, ASTM F468, ASME SB166 or project specification Confirm the required product, dimensional and material standards before ordering. ASTM / ASME compliant fasteners
Strength Grade Annealed, solution annealed, cold worked or custom strength condition Match the strength condition to load, temperature and installation requirements. High tensile strength with good creep and oxidation resistance
Surface Finish Plain, bright, pickled, passivated or coated Select the finish according to corrosion exposure and assembly requirements. Clean corrosion-resistant surface supplied as required
Nut & Washer Matching Matching Inconel 600 nuts and washers or compatible nickel alloy combinations Use compatible materials to reduce galling and galvanic corrosion. Matched fastener sets available for reliable installation
Inspection & Certification MTC, PMI, chemical analysis, tensile test, hardness test, dimensional inspection and third-party inspection Confirm testing, documentation and full traceability requirements. EN 10204 3.1 certificate and batch traceability available









Standards

Common standards for Inconel 600 Fasteners

The final standard should follow the purchase order, engineering specification or project drawing.

Product Type Common Standards Typical Use Inspection Notes
Inconel 600 Bolts ASTM F468, ASTM B166 / ASME SB166 Heat-treatment equipment, chemical processing, nuclear systems and high-temperature assemblies Verify thread dimensions, tensile properties, hardness, PMI, surface condition and heat traceability.
Inconel 600 Stud Bolts ASTM F468, ASTM B166 / ASME SB166, ASME B1.1 Flanged joints, pressure vessels, valves and furnace equipment Check thread fit, overall length, mechanical properties, PMI and material certificates.
Inconel 600 Nuts ASTM F467, ASTM B166 / ASME SB166, ASME B18.2.2 Matching nuts for nickel-alloy bolts and studs in corrosive or elevated-temperature service Confirm thread compatibility, proof load or hardness, dimensions and material traceability.
Inconel 600 Screws ASTM F468, ASME B18 Series, customer specifications Instrumentation, electrical equipment, furnace fixtures and chemical-processing components Inspect head geometry, drive condition, thread accuracy, mechanical properties and surface defects.
Inconel 600 Washers ASME B18.21.1, DIN 125 / ISO 7089, customer specifications Load distribution and joint protection in high-temperature and corrosive environments Verify outside diameter, inside diameter, thickness, flatness, PMI and surface condition.
Custom Inconel 600 Fasteners ASTM B166 / ASME SB166, ASTM F468 / F467, customer drawings Special connections for nuclear, aerospace, thermal-processing and chemical equipment Review drawings, machining tolerances, heat treatment, NDT, mechanical testing and inspection certificates.









Chemical Composition

Inconel 600 Fasteners composition reference

Chemical composition is reported by heat on the material test certificate. Use the table below as a material-selection reference.

Element Symbol Typical Requirement Function
Nickel Ni 72.0 min Provides excellent corrosion resistance, toughness, and resistance to chloride stress corrosion cracking.
Chromium Cr 14.0-17.0 Improves oxidation resistance and performance in high-temperature environments.
Iron Fe 6.0-10.0 Provides controlled alloy balance and contributes to mechanical strength.
Carbon C 0.15 max Controlled to maintain fastener ductility and weldability.
Manganese Mn 1.0 max Acts as a deoxidizer and supports manufacturing consistency.
Silicon Si 0.50 max Controlled to maintain surface quality and mechanical properties.
Copper Cu 0.50 max Controlled minor element supporting alloy stability.
Cobalt Co 1.0 max Controlled residual element in the nickel-based alloy.
Sulfur S 0.015 max Controlled impurity to reduce brittleness and cracking risk.









Mechanical Properties

Mechanical Properties of Inconel 600 Fasteners

Mechanical properties vary by standard, pipe size, production route and heat treatment. Use the specified standard and MTC as the final acceptance basis.

Condition / Product Tensile Strength Yield Strength 0.2% Elongation Notes
Annealed Inconel 600 bolts / studs 550 MPa min reference 240 MPa min reference 30% min reference Common reference condition for heat-resistant and corrosion-resistant fasteners.
Cold-worked Inconel 600 bolts / studs By fastener class, diameter, and specification By fastener class, diameter, and specification Lower than annealed condition Cold working increases strength and hardness while reducing ductility.
Inconel 600 nuts By applicable fastener specification By applicable fastener specification By applicable fastener specification Specify proof load, hardness, thread class, and compatibility with mating fasteners.
Custom Inconel 600 fasteners By customer requirement and applicable standard By customer requirement and applicable standard By customer requirement and applicable standard Confirm heat treatment, thread form, dimensional tolerance, inspection, and traceability.









Values shown are reference data for product selection. Purchase orders should define the exact standard, condition, inspection scope and certificate requirement.

Quotation Checklist

Information to confirm for your order

Share your requirements, including material, size, quantity, and specifications, for a fast quotation.

Material

Grade name, UNS number, equivalent grade or project material code.

Pipe Size

OD / NPS, wall thickness or schedule, length, tolerance and quantity.

Standard

ASTM, ASME, EN, DIN, drawing or customer specification.

Condition

Seamless, welded, annealed, solution annealed, pickled or polished.

Inspection

MTC EN10204 3.1, PMI, UT / ET, hydrotest and dimensional report.

Delivery

Destination, packing requirement, shipping method and delivery deadline.

Related Products

Related Products for Inconel 600 Fasteners

Browse related alloy products and product forms that may suit the same application.

Related Articles

Articles about Inconel 600 Fasteners standards, material selection and applications

View All
FAQ

Frequently asked questions about Inconel 600 Fasteners

FAQ content helps cover buyer questions and supports SEO for long-tail product searches.

Inconel 600 Fasteners are used in chemical processing, heat treatment equipment, furnace components, aerospace systems, nuclear applications and high-temperature environments requiring good corrosion resistance.

Available products include bolts, nuts, screws, studs, washers, threaded rods, U-bolts and custom fasteners manufactured according to drawings or project specifications.

Common standards include ASTM F468 for non-ferrous alloy bolts, screws and studs, ASTM F467 for nuts, and ASME SF468 and ASME SF467 equivalents. DIN, ISO, ANSI and customer standards are also available.

Inconel 600 Fasteners can be supplied in annealed or customized conditions with plain, passivated, polished, coated or other surface finishes according to application requirements.

Yes. Inconel 600 Fasteners can be supplied with an EN10204 3.1 material certificate, heat number traceability, chemical composition, mechanical test results and PMI inspection when required.

Please provide the fastener type, Inconel grade, size, thread specification, length, quantity, standard, strength requirement, surface finish, certificate requirements and destination.

Request Inconel 600 Fasteners Quote

Send your pipe size, standard and quantity

For faster feedback, include OD / NPS, wall thickness or schedule, length, quantity, standard, certificate requirement and destination. If you have a drawing or project specification, send it with the inquiry.
