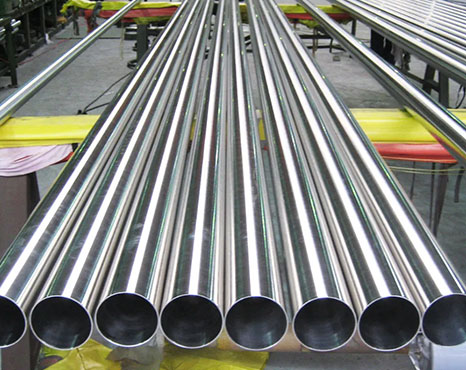

Inconel 600 Pipe

Inconel 600 Pipe is manufactured from a nickel-chromium alloy that offers excellent resistance to oxidation, corrosion, and high-temperature service conditions. It maintains reliable strength and dimensional stability when exposed to heat, steam, alkaline solutions, and other aggressive media.
Inconel 600 Pipe is widely used in chemical processing, heat treatment equipment, nuclear power, aerospace, furnace systems, and heat exchangers. Its resistance to stress corrosion cracking, excellent durability, and long service life make it a dependable choice for demanding piping applications.







Request Quote View Specifications
Product Overview

Inconel 600 Pipe for High-Performance Applications

Explore detailed information for this alloy product, including specifications, applications, supply options and quotation requirements.

Why buyers choose Inconel 600 Pipe

Inconel 600 Pipe is manufactured from a nickel-chromium alloy that offers excellent resistance to oxidation, corrosion, and high-temperature service conditions. It maintains reliable strength and dimensional stability when exposed to heat, steam, alkaline solutions, and other aggressive media.
Inconel 600 Pipe is widely used in chemical processing, heat treatment equipment, nuclear power, aerospace, furnace systems, and heat exchangers. Its resistance to stress corrosion cracking, excellent durability, and long service life make it a dependable choice for demanding piping applications.







Inconel 600 Pipe
Pipe Specifications

Inconel 600 Pipe size range and supply information

Specifications, available sizes and delivery conditions can vary by production route and order requirements. Contact us for current availability.

Item Typical Options Buyer Notes Typical Specification
Material Grade Inconel 600 / UNS N06600 / W.Nr. 2.4816 Confirm the alloy designation, chemical composition and certification requirements. Nickel-chromium alloy for high-temperature and corrosive service
Pipe Type Seamless pipe, welded pipe, tube or heat exchanger tube Select the pipe type according to pressure, temperature and fabrication requirements. Seamless and welded construction available
Outside Diameter Small-diameter tube to large-diameter pipe Provide OD in millimeters, inches or NPS where applicable. Standard and custom outside diameters available
Wall Thickness SCH 5S to XXS, custom wall thickness or drawing requirement Match wall thickness to design pressure, temperature and connected components. Schedule and custom thickness options available
Manufacturing Standard ASTM B167, ASTM B516, ASME SB167, ASME SB516 or project specification Confirm the required seamless or welded pipe standard before ordering. ASTM B167 / ASTM B516 / ASME SB167 / ASME SB516
Length Random length, fixed length, cut length or project length Confirm cutting tolerance, end preparation and packing requirements. Mill length or precision-cut pieces available
Delivery Condition Annealed, solution annealed, pickled, bright annealed or polished Match the condition and surface finish to welding, forming and corrosion requirements. Annealed and pickled condition commonly supplied
Inspection & Certification MTC, PMI, tensile test, hardness test, hydrotest, UT / ET and dimensional inspection Confirm NDE scope, testing documentation and traceability requirements. EN 10204 3.1 certificate and full heat traceability available







Standards

Common standards for Inconel 600 Pipe

The final standard should follow the purchase order, engineering specification or project drawing.

Product Type Common Standards Typical Use Inspection Notes
Inconel 600 Seamless Pipe ASTM B167 / ASME SB167, ASTM B829 / ASME SB829 High-temperature piping, chemical processing, nuclear systems and furnace equipment Hydrostatic testing, UT / ET, PMI, dimensional inspection and heat traceability as required.
Inconel 600 Welded Pipe ASTM B516 / ASME SB516, ASTM B751 / ASME SB751 Large-diameter process piping, heat-treatment systems and corrosion-resistant fabricated pipework Weld visual inspection, radiographic or ultrasonic testing, pressure testing and MTC review.
Inconel 600 Heat Exchanger Pipe ASTM B163 / ASME SB163, ASTM B730 / ASME SB730 Heat exchangers, condensers, boilers and high-temperature fluid service Check eddy-current or ultrasonic testing, wall thickness, surface condition, PMI and dimensional accuracy.
Inconel 600 Large Diameter Pipe ASTM B516 / ASME SB516, ASTM B751 / ASME SB751 Industrial furnaces, chemical plants, power-generation and exhaust systems Verify diameter, roundness, weld integrity, pressure test results and material certificates.
Inconel 600 Thin-Wall Pipe ASTM B167 / ASME SB167, ASTM B163 / ASME SB163 Instrumentation, heat-transfer lines and lightweight high-temperature assemblies Inspect wall thickness, ovality, surface finish, leak testing, PMI and lot traceability.







Chemical Composition

Inconel 600 Pipe composition reference

Chemical composition is reported by heat on the material test certificate. Use the table below as a material-selection reference.

Element Symbol Typical Requirement Function
Nickel Ni 72.0 min Provides corrosion resistance, toughness, and resistance to chloride stress corrosion cracking.
Chromium Cr 14.0-17.0 Improves oxidation resistance and high-temperature pipe performance.
Iron Fe 6.0-10.0 Provides alloy balance and contributes to pipe strength.
Carbon C 0.15 max Controlled to maintain ductility, weldability, and formability.
Manganese Mn 1.0 max Acts as a deoxidizer during alloy production.
Silicon Si 0.50 max Controlled to maintain surface quality and fabrication performance.
Copper Cu 0.50 max Controlled minor element supporting alloy stability.
Cobalt Co 1.0 max Controlled residual element in the nickel-based alloy.
Sulfur S 0.015 max Controlled impurity to reduce brittleness and cracking risk.







Mechanical Properties

Mechanical Properties of Inconel 600 Pipe

Mechanical properties vary by standard, pipe size, production route and heat treatment. Use the specified standard and MTC as the final acceptance basis.

Condition / Product Tensile Strength Yield Strength 0.2% Elongation Notes
Annealed seamless Inconel 600 pipe / tube 550 MPa min reference 240 MPa min reference 30% min reference Common selection reference for high-temperature and corrosion-resistant piping.
Solution annealed pipe / tube By applicable ASTM / ASME specification By applicable ASTM / ASME specification By applicable ASTM / ASME specification Selected when oxidation resistance, corrosion performance, and fabrication requirements dominate.
Welded Inconel 600 pipe By ASTM / ASME and purchase specification By ASTM / ASME and purchase specification By ASTM / ASME and purchase specification Specify weld quality, heat treatment, dimensional tolerances, and testing requirements.
Custom Inconel 600 pipe / tube By customer requirement and applicable standard By customer requirement and applicable standard By customer requirement and applicable standard Confirm outside diameter, wall thickness, length, surface finish, inspection, and traceability.







Values shown are reference data for product selection. Purchase orders should define the exact standard, condition, inspection scope and certificate requirement.

Quotation Checklist

Information to confirm for your order

Share your requirements, including material, size, quantity, and specifications, for a fast quotation.

Material

Grade name, UNS number, equivalent grade or project material code.

Pipe Size

OD / NPS, wall thickness or schedule, length, tolerance and quantity.

Standard

ASTM, ASME, EN, DIN, drawing or customer specification.

Condition

Seamless, welded, annealed, solution annealed, pickled or polished.

Inspection

MTC EN10204 3.1, PMI, UT / ET, hydrotest and dimensional report.

Delivery

Destination, packing requirement, shipping method and delivery deadline.

Related Products

Related Products for Inconel 600 Pipe

Browse related alloy products and product forms that may suit the same application.

Related Articles

Articles about Inconel 600 Pipe standards, material selection and applications

View All
FAQ

Frequently asked questions about Inconel 600 Pipe

FAQ content helps cover buyer questions and supports SEO for long-tail product searches.

Inconel 600 Pipe is used in chemical processing, heat treatment equipment, furnace components, nuclear systems, aerospace applications, heat exchangers and high-temperature piping systems.

Common standards include ASTM B167 and ASME SB167 for seamless pipe and tube, as well as ASTM B516 and ASME SB516 for welded pipe. Project specifications can also be reviewed.

Yes. Inconel 600 can be supplied as seamless pipe, welded pipe, tube or heat exchanger tube depending on diameter, wall thickness, quantity and application requirements.

Inconel 600 Pipe is available in various outside diameters, wall thicknesses and schedules, including custom lengths and dimensions according to drawings or project requirements.

Yes. Material can be supplied with an EN10204 3.1 certificate, heat number traceability, chemical and mechanical test results, PMI and dimensional inspection reports when required.

Please provide the grade, pipe type, outside diameter, wall thickness or schedule, length, quantity, standard, delivery condition, certificate requirements and destination.

Request Inconel 600 Pipe Quote

Send your pipe size, standard and quantity

For faster feedback, include OD / NPS, wall thickness or schedule, length, quantity, standard, certificate requirement and destination. If you have a drawing or project specification, send it with the inquiry.
