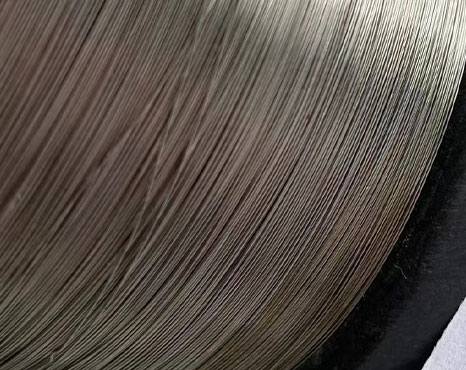

Inconel 600 Wire

Inconel 600 Wire is manufactured from a nickel-chromium alloy that provides excellent resistance to oxidation, corrosion, and high-temperature service conditions. It maintains reliable strength, flexibility, and dimensional stability when exposed to heat, steam, alkaline solutions, and other aggressive media.
With excellent formability, weldability, and durability, Inconel 600 Wire is widely used for springs, mesh, fasteners, heating elements, and precision components in chemical processing, nuclear power, aerospace, heat treatment, and furnace systems. Its resistance to stress corrosion cracking and long service life make it a dependable choice for demanding industrial applications.







Request Quote View Specifications
Product Overview

Inconel 600 Wire for High-Performance Applications

Explore detailed information for this alloy product, including specifications, applications, supply options and quotation requirements.

Why buyers choose Inconel 600 Wire

Inconel 600 Wire is manufactured from a nickel-chromium alloy that provides excellent resistance to oxidation, corrosion, and high-temperature service conditions. It maintains reliable strength, flexibility, and dimensional stability when exposed to heat, steam, alkaline solutions, and other aggressive media.
With excellent formability, weldability, and durability, Inconel 600 Wire is widely used for springs, mesh, fasteners, heating elements, and precision components in chemical processing, nuclear power, aerospace, heat treatment, and furnace systems. Its resistance to stress corrosion cracking and long service life make it a dependable choice for demanding industrial applications.







Inconel 600 Wire
Pipe Specifications

Inconel 600 Wire size range and supply information

Specifications, available sizes and delivery conditions can vary by production route and order requirements. Contact us for current availability.

Item Typical Options Buyer Notes Typical Specification
Material Grade Inconel 600 / UNS N06600 / W.Nr. 2.4816 Confirm the alloy designation, chemical composition and certification requirements. Nickel-chromium alloy with excellent oxidation and high-temperature resistance
Wire Type General-purpose wire, spring wire, mesh wire, weaving wire or forming wire Select the wire type according to the application, forming method and required strength. Round wire supplied in coil, spool or straight length
Wire Diameter Fine wire, standard wire or heavy-gauge wire Provide the required diameter, unit and dimensional tolerance. Standard and custom diameters available according to drawings
Applicable Standard ASTM B166, ASME SB166, AMS 5687 or project specification Confirm the applicable material and wire-product standard before ordering. ASTM B166 / ASME SB166 / AMS 5687
Delivery Condition Annealed, soft, spring temper, cold drawn or hard drawn The condition affects tensile strength, flexibility, springback and forming performance. Soft annealed or cold-worked condition supplied as required
Surface Finish Bright drawn, pickled, polished, oxide-free or coated Specify surface cleanliness and finish requirements for forming or direct use. Clean, uniform surface with controlled oxidation
Packaging Coil, spool, reel, drum or straightened cut length Specify coil weight, winding direction, spool type and handling requirements. Moisture-resistant export packaging available
Inspection & Certification MTC, PMI, chemical analysis, tensile test, hardness test and dimensional inspection Confirm documentation, testing scope and batch traceability requirements. EN 10204 3.1 certificate and full lot traceability available







Standards

Common standards for Inconel 600 Wire

The final standard should follow the purchase order, engineering specification or project drawing.

Product Type Common Standards Typical Use Inspection Notes
Inconel 600 General-Purpose Wire AMS 5687, ASTM B166 / ASME SB166 Formed parts, ties, retainers and corrosion-resistant components Verify wire diameter, tensile properties, surface condition, PMI and heat traceability.
Inconel 600 Cold Heading Wire ASTM B166 / ASME SB166, AMS 5687 Fasteners, pins, rivets and cold-formed high-temperature components Inspect ductility, hardness, surface defects, dimensional accuracy and lot traceability.
Inconel 600 Spring Wire AMS 5687, ASTM B166 / ASME SB166 Springs, clips and retaining components for furnace, chemical and thermal-service equipment Confirm temper condition, tensile strength, elastic performance, diameter and surface finish.
Inconel 600 Fine Wire AMS 5687, applicable customer specifications Instrumentation, mesh, filters, heating elements and precision assemblies Verify fine-wire diameter, roundness, cleanliness, surface quality and electrical or mechanical properties.
Inconel 600 Mesh Wire AMS 5687, ASTM B166 / ASME SB166, customer drawings Filter screens, baskets, trays and high-temperature processing equipment Inspect wire diameter, mesh count, opening size, weave pattern, flatness and material certificates.







Chemical Composition

Inconel 600 Wire composition reference

Chemical composition is reported by heat on the material test certificate. Use the table below as a material-selection reference.

Element Symbol Typical Requirement Function
Nickel Ni 72.0 min Provides corrosion resistance, toughness, and high-temperature stability.
Chromium Cr 14.0-17.0 Improves oxidation resistance and performance in high-temperature environments.
Iron Fe 6.0-10.0 Provides alloy balance and contributes to wire strength.
Carbon C 0.15 max Controlled to maintain wire ductility, formability, and weldability.
Manganese Mn 1.0 max Acts as a deoxidizer during alloy production.
Silicon Si 0.50 max Controlled to maintain surface quality and manufacturing consistency.
Copper Cu 0.50 max Controlled minor element supporting alloy stability.
Cobalt Co 1.0 max Controlled residual element in the nickel-based alloy.
Sulfur S 0.015 max Controlled impurity to reduce brittleness and cracking risk.







Mechanical Properties

Mechanical Properties of Inconel 600 Wire

Mechanical properties vary by standard, pipe size, production route and heat treatment. Use the specified standard and MTC as the final acceptance basis.

Condition / Product Tensile Strength Yield Strength 0.2% Elongation Notes
Annealed Inconel 600 wire 550 MPa min reference 240 MPa min reference 30% min reference General-purpose condition with good ductility, oxidation resistance, and corrosion performance.
Cold-drawn Inconel 600 wire By temper, diameter, and purchase specification By temper, diameter, and purchase specification Lower than annealed condition Cold working increases strength and hardness while reducing ductility.
Spring-temper Inconel 600 wire By required spring temper and wire diameter By required spring temper and wire diameter By specification Confirm temper, dimensional tolerance, surface finish, and spring-performance requirements.
Custom Inconel 600 wire By customer requirement and applicable standard By customer requirement and applicable standard By customer requirement and applicable standard Confirm coil or spool size, wire diameter, surface condition, testing, and traceability.







Values shown are reference data for product selection. Purchase orders should define the exact standard, condition, inspection scope and certificate requirement.

Quotation Checklist

Information to confirm for your order

Share your requirements, including material, size, quantity, and specifications, for a fast quotation.

Material

Grade name, UNS number, equivalent grade or project material code.

Pipe Size

OD / NPS, wall thickness or schedule, length, tolerance and quantity.

Standard

ASTM, ASME, EN, DIN, drawing or customer specification.

Condition

Seamless, welded, annealed, solution annealed, pickled or polished.

Inspection

MTC EN10204 3.1, PMI, UT / ET, hydrotest and dimensional report.

Delivery

Destination, packing requirement, shipping method and delivery deadline.

Related Products

Related Products for Inconel 600 Wire

Browse related alloy products and product forms that may suit the same application.

Related Articles

Articles about Inconel 600 Wire standards, material selection and applications

View All
FAQ

Frequently asked questions about Inconel 600 Wire

FAQ content helps cover buyer questions and supports SEO for long-tail product searches.

Inconel 600 Wire is used for springs, wire mesh, fasteners, welding applications, furnace components, chemical processing equipment, aerospace parts and high-temperature corrosion-resistant applications.

Common standards include ASTM B166 and ASME SB166 for nickel alloy 600 wire, rod and bar. Welding wire is commonly supplied according to AWS A5.14 ERNiCr-3.

Inconel 600 Wire can be supplied in various diameters as fine wire, spring wire, welding wire, straightened wire or wire rod, depending on the specification and application.

Available conditions include bright, annealed, cold drawn, polished, oxide-free and customized surface finishes according to the required application and customer specification.

Yes. Inconel 600 Wire can be supplied with an EN10204 3.1 certificate, heat number traceability, chemical composition, mechanical properties and PMI or batch inspection records.

Please provide the wire type, diameter, condition, quantity, standard, surface finish, packaging, certificate requirements and destination.

Request Inconel 600 Wire Quote

Send your pipe size, standard and quantity

For faster feedback, include OD / NPS, wall thickness or schedule, length, quantity, standard, certificate requirement and destination. If you have a drawing or project specification, send it with the inquiry.
