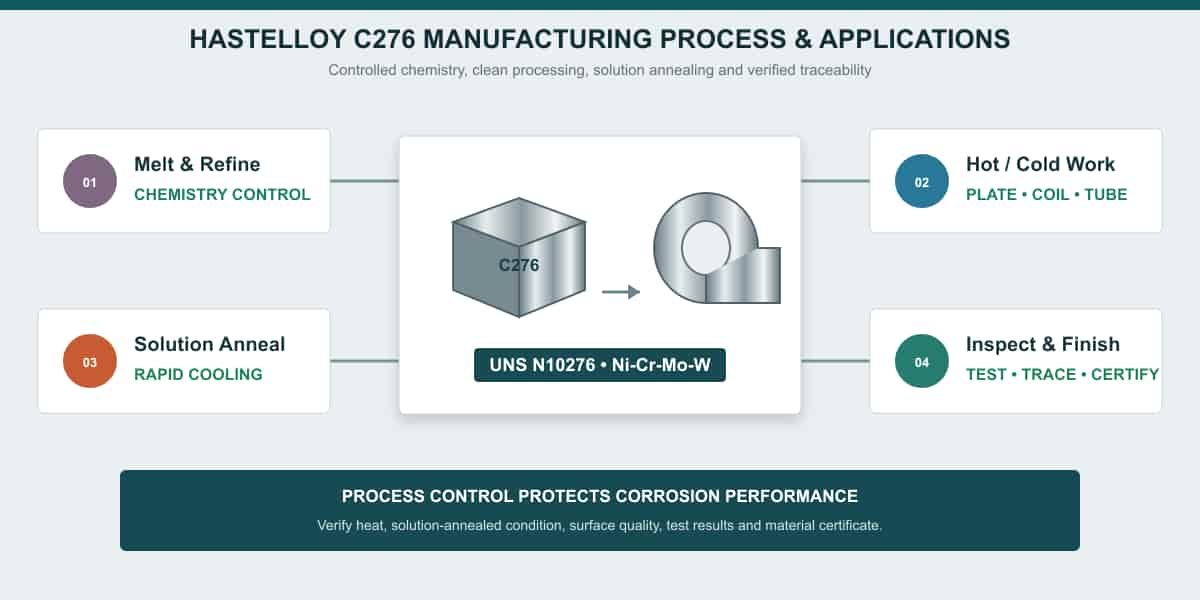

Hastelloy C276 Manufacturing Process and Applications

Hastelloy C276 is manufactured through tightly controlled raw-material selection, melting, refining, casting, hot working, cold working, solution heat treatment, surface finishing, and quality inspection. Its low carbon and silicon contents, combined with high nickel, chromium, molybdenum, and tungsten levels, give the alloy exceptional resistance to reducing acids, oxidizing contaminants, pitting, crevice corrosion, and stress-corrosion cracking. Proper manufacturing is essential because chemical segregation, excessive heat exposure, surface contamination, or incorrect cooling can reduce the corrosion performance expected from the finished plate, sheet, strip, bar, wire, pipe, tube, or forged component.

Overview of Hastelloy C276

Hastelloy C276 is a nickel-chromium-molybdenum-tungsten corrosion-resistant alloy designated UNS N10276 and commonly associated with material number 2.4819. It was developed for severe chemical-processing environments containing reducing acids, chlorides, oxidizing impurities, wet chlorine, seawater, and contaminated process streams.

Nickel forms the base of the alloy and provides resistance to many reducing environments. Chromium improves performance in oxidizing media and helps form a protective passive film. Molybdenum and tungsten increase resistance to localized attack, including pitting and crevice corrosion, while the low carbon and silicon levels reduce the formation of harmful grain-boundary phases during welding.

C276 is a wrought alloy rather than a single product shape. It is manufactured as plate, sheet, strip, coil, bar, rod, wire, seamless tube, welded tube, seamless pipe, welded pipe, forgings, flanges, fittings, and fabricated process equipment. Each form requires a suitable combination of deformation, heat treatment, surface preparation, and inspection.

Why Manufacturing Quality Matters

The nominal chemical composition alone does not guarantee expected corrosion resistance. Performance can be affected by segregation, improper hot-working temperature, incomplete solution treatment, slow cooling, iron contamination, heat tint, weld defects, and incorrect filler metal. A reliable C276 product must therefore be supported by controlled production records and a traceable material certificate.

Raw Material Selection and Chemical Composition Control

Manufacturing begins with carefully selected nickel, chromium, molybdenum, tungsten, iron-bearing additions, and approved recycled material. Scrap may be used when it is correctly identified, clean, segregated, and included within a controlled charge calculation. Contaminated or mixed scrap can introduce copper, sulfur, phosphorus, lead, or other undesirable residual elements.

Raw materials are weighed according to a melt-charge calculation designed to achieve the required final composition after melting and refining losses. Samples taken during production are analyzed using methods such as optical emission spectroscopy, X-ray fluorescence, combustion analysis, or inert-gas analysis.

Element	Typical Specification Range, wt.%	Manufacturing and Performance Function
Nickel	Balance	Provides the stable austenitic matrix and resistance to many reducing chemicals.
Chromium	Approximately 14.5–16.5	Improves passivation, oxidation resistance, and performance in oxidizing environments.
Molybdenum	Approximately 15.0–17.0	Provides resistance to reducing acids, pitting, and crevice corrosion.
Tungsten	Approximately 3.0–4.5	Strengthens resistance to localized corrosion and aggressive reducing conditions.
Iron	Approximately 4.0–7.0	Controlled constituent that affects processing, structure, and material cost.
Cobalt	Usually 2.5 maximum	Restricted to maintain specification compliance and consistent properties.
Carbon	Usually 0.01 maximum	Kept very low to limit grain-boundary carbide precipitation during welding.
Silicon	Usually 0.08 maximum	Limited to reduce formation of undesirable intermetallic and segregated phases.
Manganese	Usually 1.0 maximum	Controlled for deoxidation, cleanliness, and specification compliance.
Vanadium	Usually 0.35 maximum	Restricted residual element that can influence microstructure and processing.

The exact limits must be taken from the governing ASTM, ASME, EN, ISO, or customer specification. Nominal values from a website should not replace the limits recorded on the mill test certificate.

Melting and Refining Processes

C276 requires a melting process capable of controlling carbon, silicon, sulfur, oxygen, nitrogen, and metallic residuals. Commercial producers may use vacuum induction melting, electric melting followed by argon-oxygen decarburization, vacuum oxygen decarburization, or another qualified primary melting route.

Depending on product quality and purchaser requirements, the primary melt may be remelted by electroslag remelting or vacuum arc remelting. Remelting can improve cleanliness, reduce inclusions, control solidification, and produce a more uniform ingot. It is not mandatory for every C276 specification, so the required melt route should be stated when it is important to the application.

Primary Melting

Primary melting combines the charge materials into a chemically controlled liquid alloy. Furnace atmosphere, refractory compatibility, slag practice, stirring, temperature, and holding time are managed to limit contamination and excessive loss of reactive elements.

Refining

Refining removes or controls carbon, gases, inclusions, and undesirable residuals. The manufacturer takes samples during the process and adjusts the melt when necessary. Because C276 contains high levels of molybdenum and tungsten, complete dissolution and chemical uniformity require careful temperature and mixing control.

Secondary Remelting

Electroslag remelting passes the consumable electrode through a refining slag, while vacuum arc remelting resolidifies the alloy under vacuum. Either method can improve cleanliness and ingot structure, but each creates a different solidification environment. The selected route should be supported by process qualification and product testing.

Manufacturing Stage	Main Control Objective	Risk if Poorly Controlled
Charge preparation	Accurate chemistry and clean raw materials	Residual contamination or incorrect alloy content
Primary melting	Complete dissolution and composition control	Segregation, gas pickup, or refractory contamination
Refining	Low carbon, low silicon, and controlled inclusions	Reduced weldability or localized corrosion resistance
Secondary remelting	Improved cleanliness and solidification structure	Internal defects or inconsistent mechanical properties

Casting and Ingot Production

After refining, the molten alloy is cast into an ingot, electrode, slab, or another intermediate form. Solidification must be controlled because alloying elements do not freeze uniformly. Molybdenum and tungsten can segregate between dendrites, creating local chemical and microstructural differences.

The ingot may undergo homogenization before major deformation. Homogenization uses controlled high-temperature exposure to reduce chemical segregation and prepare the material for forging or rolling. Excessive temperature or holding time must be avoided because incipient melting, coarse grains, or surface damage can occur.

Ingot surfaces are inspected and may be ground, machined, or conditioned to remove cracks, laps, scale, or local casting defects. If defects remain, they can extend during rolling or forging and appear as laminations or surface seams in the finished product.

Traceability During Ingot Production

Each heat is assigned an identification number that follows the material through forging, rolling, heat treatment, cutting, testing, and shipment. When one ingot is divided into multiple products, transfer markings and production records must preserve the connection to the original heat.

Hot Forging and Hot-Rolling Processes

The cast structure is broken down through hot forging, cogging, extrusion, or rolling. Hot deformation closes suitable internal discontinuities, refines the structure, redistributes segregated regions, and converts the ingot into billet, slab, bar, plate, or tube hollow.

C276 has high hot strength and a narrower practical processing window than ordinary stainless steel. Working temperatures are commonly selected within an approximate range of 950–1230°C, but the exact starting temperature, finishing temperature, reduction schedule, and reheating practice depend on product form and supplier procedure.

Hot Forging

Forging is used to manufacture billets, bars, rings, flanges, fittings, shafts, and near-net-shape components. The workpiece must be heated uniformly, and reduction must be distributed to avoid localized strain. Heavy sections may require multiple reheating cycles.

Forging below the qualified finishing temperature can cause cracking because deformation resistance rises rapidly as the alloy cools. Excessive temperature can cause grain coarsening, oxidation, or localized melting. Dies and tools must be powerful, rigid, and suitable for nickel-alloy processing.

Hot Rolling

Slabs are hot rolled into plate or intermediate coil. Each pass reduces thickness and elongates the structure. Pass reduction, temperature loss, roll force, edge condition, and flatness are monitored. Scale is removed between relevant operations to prevent it from being rolled into the surface.

Hot Extrusion

Seamless tube and pipe production may begin with a pierced or extruded hollow. Extrusion requires high force because of the alloy’s hot strength. Lubrication, billet temperature, die design, and surface preparation influence dimensional accuracy and defect formation.

Cold Working and Forming Methods

Cold rolling, drawing, bending, spinning, pressing, and tube reduction are used to achieve final dimensions, surface quality, and mechanical properties. C276 is ductile but work-hardens rapidly. Forming equipment normally requires greater force than equipment used for common austenitic stainless steel.

Cold Rolling

Cold rolling produces sheet, strip, and precision coil with controlled thickness and finish. Multiple reductions may be separated by intermediate solution annealing when accumulated work hardening becomes too high.

Tube Drawing and Pilgering

Seamless tube may be cold drawn or cold pilgered after hot extrusion. These operations improve dimensional accuracy, wall-thickness uniformity, and surface finish. Proper lubrication and removal of drawing compounds are necessary before heat treatment.

Bending and Press Forming

C276 can be formed into cylinders, heads, cones, elbows, and complex process-equipment shapes. Designers should account for springback and use bend radii appropriate for thickness and material condition. Sharp tooling marks can become crack-initiation or corrosion sites.

Work Hardening

Cold work increases hardness and strength while reducing ductility. It can also create residual stresses that influence dimensional stability and stress-corrosion performance. Severe forming is normally followed by a qualified solution heat treatment when the finished dimensions and product specification permit it.

Solution Heat Treatment and Cooling

Solution heat treatment restores a uniform corrosion-resistant structure after hot or cold working. C276 is commonly solution annealed in the approximate range of 1120–1175°C, followed by rapid cooling. The exact temperature, holding time, and cooling method must comply with the product specification and qualified manufacturing procedure.

The treatment dissolves undesirable secondary phases, reduces the effects of deformation, and restores ductility. Holding time must be sufficient for the complete section to reach the required temperature without causing unnecessary grain growth.

Importance of Rapid Cooling

Rapid cooling minimizes the time spent in temperature ranges where carbides or intermetallic phases can precipitate. Water quenching is frequently used for thick sections, while sufficiently rapid air or gas cooling may be permitted for certain thin products under applicable procedures.

Cooling methods are not automatically interchangeable. Section thickness, load arrangement, furnace-to-quench transfer time, distortion limits, and specification requirements must be considered.

Furnace Atmosphere

Vacuum, inert gas, reducing atmosphere, or controlled-air furnaces may be used depending on the product and required finish. Sulfur-bearing furnace contamination must be avoided. Heavy scale or chromium-depleted surface layers must be removed before the material enters critical corrosive service.

Machining Characteristics and Recommended Techniques

Hastelloy C276 can be machined using conventional operations, but its high strength, ductility, low thermal conductivity, and rapid work-hardening behavior make it more demanding than carbon steel. A tool that rubs rather than cuts can harden the surface and make the next pass more difficult.

Machine Rigidity

Machines, fixtures, and workholding should be rigid enough to prevent vibration and chatter. Tool overhang should be minimized, and the workpiece must be supported close to the cutting zone.

Cutting Tools

Sharp carbide tools with positive cutting geometry are commonly used for production machining. High-speed steel may be suitable for selected interrupted cuts or complex tools at lower cutting speeds. Tool grades and coatings should be selected according to operation, coolant, and machine capability.

Speed, Feed, and Depth of Cut

Cutting speed is generally lower than for stainless steel, while feed should be sufficient to keep the tool below the previously work-hardened surface. A positive, continuous cut is preferable to repeated dwelling. Exact parameters depend on tool diameter, operation, rigidity, and tooling supplier recommendations.

Cooling and Chip Control

Generous coolant helps remove heat and flush chips away from the cutting edge. Nickel-alloy chips can be tough and stringy, so chip-breaker geometry and safe handling are important. Coolant should not contain harmful sulfur or chlorine levels for the intended component.

Machining Practice	Recommended Approach	Practice to Avoid
Tool engagement	Maintain a positive and continuous cutting action	Rubbing, dwelling, or repeated light passes
Tool condition	Use sharp tools and replace worn edges promptly	Continuing with a glazed or chipped cutting edge
Machine setup	Use rigid fixtures and short tool overhang	Flexible setups that create chatter
Heat control	Apply suitable coolant and remove chips efficiently	Allowing heat to accumulate in the workpiece

Welding Methods and Fabrication Considerations

C276 has good weldability for a highly alloyed corrosion-resistant material. Its very low carbon and silicon contents reduce the risk of harmful grain-boundary precipitation during welding. Gas tungsten arc welding, gas metal arc welding, shielded metal arc welding, plasma arc welding, and submerged arc welding may be used when supported by a qualified procedure.

Filler Metals

Matching filler metals commonly include ERNiCrMo-4 for bare-wire processes and ENiCrMo-4 for covered-electrode welding. Filler selection must also consider dilution, dissimilar base metals, joint strength, service chemistry, and applicable construction code.

Joint Preparation and Cleanliness

Joint surfaces and nearby areas should be cleaned of oil, grease, paint, moisture, sulfur compounds, oxide, and embedded iron. Dedicated stainless-steel brushes, clean abrasives, and nickel-alloy fabrication tools help prevent cross-contamination.

Heat Input and Interpass Control

Heat input should be controlled to avoid excessive time at elevated temperature and an unnecessarily wide heat-affected zone. Interpass temperature should remain within the qualified welding procedure. Preheating is generally unnecessary unless required to remove moisture or control the temperature of a dissimilar assembly.

Postweld Heat Treatment

Many C276 weldments are placed in service without postweld heat treatment because the alloy was designed to retain good as-welded corrosion resistance. Severe forming, code requirements, dimensional control, or particularly aggressive service may justify solution annealing of the completed fabrication.

Weld Inspection

Visual inspection should check bead profile, undercut, overlap, crater condition, arc strikes, and surface contamination. Liquid-penetrant, radiographic, ultrasonic, leak, or pressure testing may be added according to joint category and service risk.

Surface Treatment, Pickling, and Finishing

Hot working, welding, and air heat treatment can produce oxide scale and heat tint. These layers may hide surface defects and can reduce corrosion resistance if a chromium-depleted region remains beneath them.

Mechanical Cleaning

Grinding, brushing, blasting, or machining may remove scale and defects. Abrasives must be clean and dedicated to nickel alloys. Carbon-steel shot, contaminated grinding wheels, and ordinary steel brushes can embed iron and cause rust staining or localized attack.

Chemical Pickling

Qualified pickling solutions are used to remove oxide and restore a clean metallic surface. Commercial nickel-alloy pickling treatments may contain nitric and hydrofluoric acids or proprietary combinations. These chemicals are highly hazardous and require controlled industrial equipment, ventilation, protective measures, waste treatment, and verified procedures.

Final Finishing

Finished surfaces may be descaled, pickled, ground, polished, bright annealed, or machined depending on the product specification. Pharmaceutical and high-purity applications may require tighter roughness limits and documentation of cleaning agents.

Passivation terminology should be used carefully. C276 develops its passive film naturally in suitable oxidizing conditions, but chemical cleaning does not correct an incorrect heat treatment or remove deeply embedded contamination unless the affected material is removed.

Quality Inspection and Applicable Standards

Quality inspection confirms chemistry, dimensions, mechanical properties, internal soundness, surface condition, heat treatment, and traceability. The required inspection scope depends on product form, service risk, code, and purchaser specification.

Chemical and Mechanical Testing

Heat analysis verifies the melt chemistry, while product analysis may confirm composition in the finished material. Tensile testing normally measures yield strength, tensile strength, and elongation. Hardness, bend, impact, corrosion, flattening, flare, or creep testing may be specified for particular applications.

Nondestructive Examination

Ultrasonic testing can identify internal laminations or discontinuities in plate, bar, and forgings. Eddy-current or ultrasonic testing may be used for tube. Liquid-penetrant examination identifies surface-breaking defects, while radiography can examine suitable welds and cast structures.

Dimensional and Surface Inspection

Thickness, diameter, wall thickness, straightness, flatness, ovality, length, and surface finish are checked against the relevant specification. Pipe and tube may also undergo hydrostatic, pneumatic, or leak testing.

Standard	Common C276 Product Coverage
ASTM B575 / ASME SB-575	Plate, sheet, and strip
ASTM B574 / ASME SB-574	Rod and bar
ASTM B622 / ASME SB-622	Seamless pipe and tube
ASTM B619 / ASME SB-619	Welded pipe
ASTM B626 / ASME SB-626	Welded tube
ASTM B564 / ASME SB-564	Forgings, flanges, fittings, and related products
AWS A5.14	Bare nickel-alloy welding electrodes and rods, including ERNiCrMo-4
AWS A5.11	Covered nickel-alloy welding electrodes, including ENiCrMo-4

The latest standard revision and any project-specific supplementary requirements should be stated on the order. ASTM and ASME specifications may share technical requirements but are not always interchangeable for code construction.

Chemical Processing and Pollution-Control Applications

C276 is widely used in chemical plants because it tolerates reducing acids while also resisting many oxidizing contaminants. This broad capability is valuable when process chemistry changes between normal operation, cleaning, start-up, shutdown, and upset conditions.

Typical equipment includes reactors, pressure vessels, columns, heat exchangers, piping, valves, pumps, agitators, spargers, gaskets, bellows, expansion joints, and storage tanks. The alloy is used in hydrochloric acid, sulfuric acid, phosphoric acid, chlorination, organic synthesis, and mixed-chemical systems when supported by environment-specific data.

Pollution-control applications include flue-gas desulfurization absorbers, scrubbers, ducts, dampers, spray systems, reheaters, stack liners, and wastewater equipment. These systems may contain wet chlorides, sulfur compounds, acidic condensate, oxidizers, deposits, and erosion.

Why C276 Is Used in Scrubbers

Scrubber chemistry is rarely uniform. Chloride concentration can increase through evaporation, while shutdown conditions create stagnant acidic deposits. Molybdenum and tungsten improve localized-corrosion resistance, and chromium helps the alloy tolerate oxidizing species.

Oil, Gas, Marine, and Power-Generation Applications

Oil and Gas

C276 may be selected for valves, tubing, instrument components, seals, fasteners, and chemical-injection systems exposed to chlorides, hydrogen sulfide, carbon dioxide, and treatment chemicals. Sour-service suitability depends on hardness, cold work, heat treatment, stress, temperature, and the applicable qualification standard.

Marine Applications

The alloy provides strong resistance to seawater pitting and crevice corrosion compared with many stainless steels. Applications can include splash-zone hardware, seawater piping components, fasteners, heat-exchanger parts, and equipment exposed to polluted marine water.

Crevice geometry, biofouling, deposits, galvanic contact, and stagnant conditions still require engineering review. No alloy should be treated as immune to every marine environment.

Power Generation

C276 is used in scrubbers, ductwork, chemical-handling systems, geothermal equipment, waste-to-energy plants, and selected heat-recovery systems. In power plants, resistance to acidic chloride and sulfur-bearing condensates may be more important than resistance to clean high-temperature air.

Pharmaceutical, Pulp and Paper, and Waste-Treatment Applications

Pharmaceutical Manufacturing

C276 may be used in reactors, filters, piping, dryers, mixers, and cleaning systems that encounter aggressive active ingredients, halides, solvents, or cleaning chemicals. Smooth surface finish, drainability, weld quality, and documented cleaning are important for hygienic installations.

Pulp and Paper

Bleaching and chemical-recovery systems can contain chlorine compounds, chlorine dioxide, chlorides, oxidizers, and acidic liquors. C276 may be used for bleach-plant components, washers, mixers, piping, valves, and repair fabrications where conventional stainless steels suffer rapid localized corrosion.

Industrial and Hazardous Waste Treatment

Waste streams are difficult to characterize because composition can change frequently. C276 is valuable where acids, chlorides, oxidizers, solvents, sulfur compounds, and metal salts occur together. Applications include evaporators, incinerator wet sections, scrubbers, leach systems, piping, mixers, and treatment vessels.

Selection should be based on the most aggressive credible composition rather than an average analysis. Deposits, concentration through evaporation, cleaning chemicals, and shutdown condensation must be included in the evaluation.

Hastelloy C276 Manufacturing and Application FAQs

How is Hastelloy C276 manufactured?

Hastelloy C276 is produced by controlled melting and refining, followed by casting, ingot conditioning, hot forging or rolling, cold working when required, solution annealing, rapid cooling, surface finishing, and quality inspection. The exact production route varies with plate, sheet, bar, wire, pipe, tube, or forging specifications.

What temperature is used for Hastelloy C276 solution treatment?

C276 is commonly solution annealed within an approximate range of 1120–1175°C and then cooled rapidly to limit secondary-phase precipitation. The required temperature, holding time, transfer time, and cooling method must follow the applicable product standard and qualified manufacturer procedure.

What are the main applications of Hastelloy C276?

Major applications include chemical reactors, heat exchangers, acid piping, flue-gas scrubbers, pollution-control equipment, sour oil and gas components, marine systems, pharmaceutical equipment, pulp and paper bleaching systems, and hazardous-waste treatment plants. Final selection must be based on actual chemical concentration, temperature, contaminants, stress, fabrication, and required service life.
