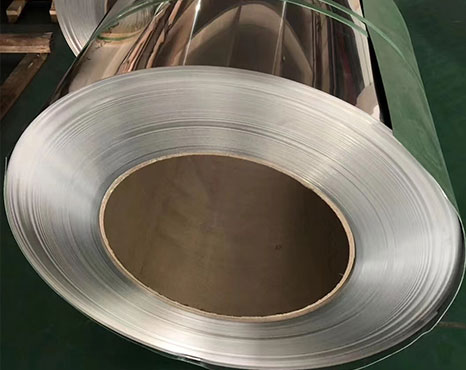

Inconel 625 Strip

Name: Inconel 625 Strip
Brand: Inconel

Inconel 625 Strip is manufactured from a nickel-chromium-molybdenum alloy that delivers excellent corrosion resistance, high strength, and reliable performance in demanding environments. It maintains its mechanical properties under high temperatures and when exposed to seawater, acids, chlorides, and other aggressive media.
With outstanding resistance to pitting, crevice corrosion, oxidation, and stress corrosion cracking, Inconel 625 Strip is widely used in chemical processing, aerospace, oil and gas, marine engineering, heat exchangers, and power generation. Its excellent formability, weldability, and long service life make it a dependable choice for precision components and industrial applications.

Request Quote View Specifications

Product Overview

Inconel 625 Strip for High-Performance Applications

Explore detailed information for this alloy product, including specifications, applications, supply options and quotation requirements.

Why buyers choose Inconel 625 Strip

Pipe Specifications

Inconel 625 Strip size range and supply information

Specifications, available sizes and delivery conditions can vary by production route and order requirements. Contact us for current availability.

Item	Typical Options	Buyer Notes	Typical Specification
Material Grade	Inconel 625 / UNS N06625 / W.Nr. 2.4856	Confirm the alloy designation, material standard and certification requirements.	Nickel-chromium-molybdenum-niobium alloy
Strip Type	Cold-rolled strip, precision strip, slit strip or coil strip	Select the strip type according to thickness, width and application requirements.	Flat-rolled strip supplied in coil or cut lengths
Thickness	Thin-gauge strip to heavy strip in standard or custom thicknesses	Provide the required thickness, unit and thickness tolerance.	Custom thickness available according to drawings or project specifications
Width	Narrow slit strip, standard-width strip or custom-width strip	Specify width, slit tolerance and edge condition.	Precision slit widths available for fabrication and stamping
Applicable Standard	ASTM B443, ASTM B704, ASME SB443, AMS 5599 or project specification	Confirm the required ASTM, ASME, AMS or customer standard before ordering.	ASTM B443 / ASME SB443 / AMS 5599
Delivery Condition	Solution annealed, annealed, cold rolled or full hard	The condition affects strength, springback, forming and machining performance.	Annealed or cold-worked condition supplied as required
Surface Finish	Bright, pickled, polished, matte or protective-film coated	Choose the finish according to forming, welding and appearance requirements.	Clean, uniform surface with optional protective film
Coil & Edge Condition	Coil, traverse-wound coil, slit edge, round edge or deburred edge	Confirm coil weight, winding direction and edge quality before production.	Precision slit and deburred edges available
Inspection & Certification	MTC, PMI, chemical analysis, tensile test, hardness test, dimensional inspection and third-party inspection	Confirm testing, traceability and documentation requirements before quotation.	EN 10204 3.1 certificate and full heat traceability available

Standards

Common standards for Inconel 625 Strip

The final standard should follow the purchase order, engineering specification or project drawing.

Product Type	Common Standards	Typical Use	Inspection Notes
Inconel 625 Cold-Rolled Strip	ASTM B443 / ASME SB443, AMS 5599	Heat exchangers, chemical-processing equipment, marine systems and aerospace components	Verify strip thickness, width, flatness, surface finish, tensile properties, PMI and heat traceability.
Inconel 625 Slit Strip	ASTM B443 / ASME SB443, AMS 5599	Precision-machined parts, gaskets, seals and fabricated corrosion-resistant components	Inspect width tolerance, edge condition, burrs, coil shape, surface quality and material certificates.
Inconel 625 Precision Strip	ASTM B443 / ASME SB443, AMS 5599, customer specifications	Electronic, instrumentation and high-temperature precision assemblies	Confirm dimensional accuracy, flatness, hardness, surface finish, chemical composition and lot traceability.
Inconel 625 Spring Strip	ASTM B443 / ASME SB443, AMS 5599	Springs, clips, retaining rings and formed parts for corrosive and elevated-temperature service	Verify temper condition, yield strength, hardness, bend performance, thickness and surface condition.
Inconel 625 Foil Strip	ASTM B443 / ASME SB443, AMS 5599, applicable customer specifications	Thermal barriers, diaphragms, seals and lightweight high-temperature components	Inspect foil thickness, pinholes, wrinkles, edge quality, surface cleanliness and batch identification.

Chemical Composition

Inconel 625 Strip composition reference

Chemical composition is reported by heat on the material test certificate. Use the table below as a material-selection reference.

Element	Symbol	Typical Requirement	Function
Nickel	Ni	58.0 min	Provides corrosion resistance, toughness, and high-temperature stability.
Chromium	Cr	20.0-23.0	Improves oxidation resistance and performance in oxidizing environments.
Molybdenum	Mo	8.0-10.0	Enhances resistance to pitting, crevice corrosion, and reducing acids.
Niobium + Tantalum	Nb + Ta	3.15-4.15	Provides solid-solution strengthening and improved strip durability.
Iron	Fe	5.0 max	Controlled balancing element in the nickel-based alloy.
Cobalt	Co	1.0 max	Controlled to maintain consistent mechanical properties.
Carbon	C	0.10 max	Limited to support formability, weldability, and corrosion resistance.
Manganese	Mn	0.50 max	Acts as a deoxidizer during alloy production.
Silicon	Si	0.50 max	Controlled to maintain surface quality and fabrication performance.
Aluminum	Al	0.40 max	Supports oxidation resistance and alloy stability.
Titanium	Ti	0.40 max	Contributes to alloy stabilization and mechanical strength.
Phosphorus	P	0.015 max	Controlled impurity to preserve formability and weldability.
Sulfur	S	0.015 max	Controlled impurity to reduce brittleness and cracking risk.

Mechanical Properties

Mechanical Properties of Inconel 625 Strip

Mechanical properties vary by standard, pipe size, production route and heat treatment. Use the specified standard and MTC as the final acceptance basis.

Condition / Product	Tensile Strength	Yield Strength 0.2%	Elongation	Notes
Annealed Inconel 625 strip	827 MPa min reference	414 MPa min reference	30% min reference	Common reference condition for formed parts, gaskets, and corrosion-resistant applications.
Cold-rolled Inconel 625 strip	By thickness, temper, and purchase specification	By thickness, temper, and purchase specification	Lower than annealed condition	Cold working increases strength and hardness while reducing ductility.
Precision Inconel 625 strip	By dimensional and temper requirements	By dimensional and temper requirements	By dimensional and temper requirements	Specify thickness tolerance, width tolerance, edge condition, and surface finish.
Custom Inconel 625 strip	By customer requirement and applicable standard	By customer requirement and applicable standard	By customer requirement and applicable standard	Confirm coil or cut-length supply, flatness, heat treatment, inspection, and traceability.

Values shown are reference data for product selection. Purchase orders should define the exact standard, condition, inspection scope and certificate requirement.

Quotation Checklist

Information to confirm for your order

Share your requirements, including material, size, quantity, and specifications, for a fast quotation.

Material

Grade name, UNS number, equivalent grade or project material code.

Pipe Size

OD / NPS, wall thickness or schedule, length, tolerance and quantity.

Standard

ASTM, ASME, EN, DIN, drawing or customer specification.

Condition

Seamless, welded, annealed, solution annealed, pickled or polished.

Inspection

MTC EN10204 3.1, PMI, UT / ET, hydrotest and dimensional report.

Delivery

Destination, packing requirement, shipping method and delivery deadline.

Related Products for Inconel 625 Strip

Browse related alloy products and product forms that may suit the same application.

Strip & Foil Hastelloy C-276 Strip

Hastelloy C-276 Strip is a precision-oriented nickel-molybdenum-chromium material developed for thin-section components exposed to severe chemical attack. It resists wet chlorine, sulfuric and hydrochloric acids,...

Strip & Foil Inconel 600 Strip

Inconel 600 Strip is manufactured from a nickel-chromium alloy that provides excellent resistance to oxidation, corrosion, and high-temperature service conditions. It maintains reliable strength, flexibility,...

Articles about Inconel 625 Strip standards, material selection and applications

View All

FAQ

Frequently asked questions about Inconel 625 Strip

FAQ content helps cover buyer questions and supports SEO for long-tail product searches.

Inconel 625 Strip is used for heat exchangers, chemical processing equipment, marine components, aerospace parts, springs, seals and high-temperature corrosion-resistant applications.

Common standards include ASTM B443 and ASME SB443 for Inconel 625 sheet, plate and strip. AMS specifications and customer requirements can also be reviewed.

Inconel 625 Strip can be supplied in different thicknesses, widths and coil lengths, including narrow strip and precision slit strip manufactured to customer dimensions.

Available finishes include bright annealed, cold rolled, pickled, polished, brushed and slit-edge finishes according to the required application and specification.

Yes. Inconel 625 Strip can be supplied with an EN10204 3.1 certificate, heat number traceability, chemical analysis, mechanical test results, PMI and dimensional inspection reports.

Please provide the grade, strip thickness, width, coil length or weight, quantity, edge condition, surface finish, standard, certificate requirements and destination.
