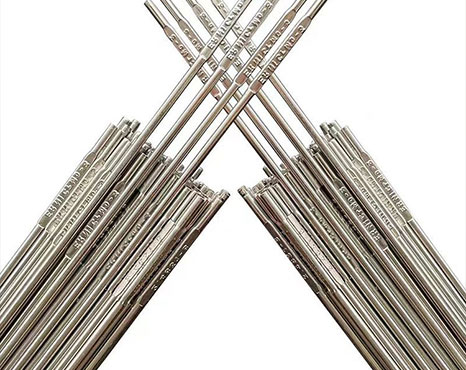

Hastelloy C-276 Welding Wire

Hastelloy C-276 Welding Wire is formulated for joining and overlay work in equipment exposed to severe chemical corrosion. Its nickel-molybdenum-chromium composition provides strong resistance to wet chlorine, sulfuric and hydrochloric acids, chlorides, and mixed oxidizing or reducing media, helping maintain weld integrity in harsh service.
The wire supports smooth deposition and reliable weld performance on Hastelloy C-276 and compatible nickel alloys, making it suitable for repairing reactors, scrubbers, piping, tanks, and other process equipment. It is widely used in chemical processing, pollution control, petrochemical, offshore, and power-generation applications where durable, corrosion-resistant welds are required.







Request Quote View Specifications
Product Overview

Hastelloy C-276 Welding Wire for High-Performance Applications

Explore detailed information for this alloy product, including specifications, applications, supply options and quotation requirements.

Why buyers choose Hastelloy C-276 Welding Wire

Hastelloy C-276 Welding Wire is formulated for joining and overlay work in equipment exposed to severe chemical corrosion. Its nickel-molybdenum-chromium composition provides strong resistance to wet chlorine, sulfuric and hydrochloric acids, chlorides, and mixed oxidizing or reducing media, helping maintain weld integrity in harsh service.
The wire supports smooth deposition and reliable weld performance on Hastelloy C-276 and compatible nickel alloys, making it suitable for repairing reactors, scrubbers, piping, tanks, and other process equipment. It is widely used in chemical processing, pollution control, petrochemical, offshore, and power-generation applications where durable, corrosion-resistant welds are required.







Hastelloy C-276 Welding Wire
Pipe Specifications

Hastelloy C-276 Welding Wire size range and supply information

Specifications, available sizes and delivery conditions can vary by production route and order requirements. Contact us for current availability.

Item Typical Options Buyer Notes Typical Specification
Material Grade Hastelloy C-276 / UNS N10276 / W.Nr. 2.4819 Confirm the base-metal grade and required welding classification. Nickel-molybdenum-chromium welding alloy for severe corrosive service
Welding Wire Type GTAW / TIG wire, GMAW / MIG wire, pulsed-arc wire or automated welding wire Select the wire type according to the welding process and equipment. Solid wire for joining Hastelloy C-276 and compatible nickel alloys
Wire Diameter 1.0 mm, 1.2 mm, 1.6 mm, 2.4 mm or custom diameter Choose the diameter according to joint thickness, welding current and position. Standard and custom diameters available
Welding Classification AWS A5.14 ERNiCrMo-4, ASME SFA-5.14 ERNiCrMo-4 or EN ISO 18274 Confirm the applicable AWS, ASME or EN classification before ordering. ERNiCrMo-4 / EN ISO Ni6276
Application Hastelloy C-276, nickel alloys, stainless steel, carbon steel and dissimilar-metal joints Check base-metal compatibility and required resistance to pitting and crevice corrosion. Suitable for chemical processing, pollution control, marine and power equipment
Delivery Condition Bright drawn, annealed, cleaned or precision-layer wound Surface cleanliness and winding quality affect arc stability and wire feeding. Uniform bright surface with controlled dimensional tolerance
Packaging Plastic spool, metal spool, coil, reel or straight length Specify spool size, net weight and packaging requirements for storage and handling. Moisture-resistant packaging with full heat and lot traceability
Inspection & Certification MTC, chemical analysis, tensile test, visual inspection and third-party inspection Confirm certificate format, testing scope and traceability requirements. EN 10204 3.1 certificate and batch test report available







Standards

Common standards for Hastelloy C-276 Welding Wire

The final standard should follow the purchase order, engineering specification or project drawing.

Product Type Common Standards Typical Use Inspection Notes
Hastelloy C-276 MIG Welding Wire AWS A5.14 / ASME SFA-5.14 ERNiCrMo-4, EN ISO 18274 NiMo16Cr15W GMAW welding of Hastelloy alloys, nickel alloys, stainless steel and dissimilar metals Verify chemical composition, wire diameter, spool condition, surface cleanliness and lot traceability.
Hastelloy C-276 TIG Welding Wire AWS A5.14 / ASME SFA-5.14 ERNiCrMo-4, EN ISO 18274 NiMo16Cr15W GTAW welding, repair work and precision fabrication for chemical and pollution-control equipment Inspect straightness, diameter tolerance, surface condition, weldability and material certificates.
Hastelloy C-276 Submerged Arc Welding Wire AWS A5.14 / ASME SFA-5.14 ERNiCrMo-4, applicable project specifications Heavy-section fabrication, pressure vessels and corrosion-resistant weld overlays Confirm wire-flux compatibility, chemical composition, weld deposit properties and batch identification.
Hastelloy C-276 Welding Wire for Cladding AWS A5.14 / ASME SFA-5.14 ERNiCrMo-4, ASME Section IX Overlay protection for carbon steel and alloy steel equipment in severe chemical service Check dilution, overlay thickness, bond integrity, PMI, weld deposit properties and NDT results.
Hastelloy C-276 Fine Welding Wire AWS A5.14 / ASME SFA-5.14 ERNiCrMo-4, EN ISO 18274 NiMo16Cr15W Micro-welding, precision repair, instrumentation and corrosion-resistant components Verify fine-wire diameter, dimensional consistency, surface finish, cleanliness and spool traceability.







Chemical Composition

Hastelloy C-276 Welding Wire composition reference

Chemical composition is reported by heat on the material test certificate. Use the table below as a material-selection reference.

Element Symbol Typical Requirement Function
Nickel Ni Balance Forms the weld metal matrix and provides toughness and broad corrosion resistance.
Molybdenum Mo 15.0-17.0 Enhances resistance to pitting, crevice corrosion, and reducing acids.
Chromium Cr 14.5-16.5 Improves resistance to oxidizing media and localized corrosion.
Iron Fe 4.0-7.0 Provides controlled alloy balance and contributes to weld metal strength.
Tungsten W 3.0-4.5 Improves localized corrosion resistance and high-temperature weld performance.
Cobalt Co 2.5 max Controlled residual element in the nickel-based welding alloy.
Manganese Mn 1.0 max Acts as a deoxidizer and supports weld pool control.
Vanadium V 0.35 max Contributes to weld metal strengthening and microstructural stability.
Silicon Si 0.08 max Controlled to support weldability, bead quality, and ductility.
Carbon C 0.010 max Minimized to reduce carbide precipitation and preserve weld corrosion resistance.
Copper Cu 0.50 max Controlled minor element supporting weld metal stability.







Mechanical Properties

Mechanical Properties of Hastelloy C-276 Welding Wire

Mechanical properties vary by standard, pipe size, production route and heat treatment. Use the specified standard and MTC as the final acceptance basis.

Product / Condition Tensile Strength Yield Strength 0.2% Elongation Notes
Hastelloy C-276 MIG / TIG welding wire 690 MPa min reference 283 MPa min reference 40% min reference Common ERNiCrMo-4 reference for joining Hastelloy C-276 and dissimilar corrosion-resistant alloys.
Hastelloy C-276 filler metal By AWS A5.14 / ASME SFA-5.14 specification By AWS A5.14 / ASME SFA-5.14 specification By AWS A5.14 / ASME SFA-5.14 specification Confirm welding process, wire classification, diameter, shielding gas, and weld deposit chemistry.
Hastelloy C-276 submerged-arc welding wire By wire-flux combination and purchase specification By wire-flux combination and purchase specification By wire-flux combination and purchase specification Specify flux type, weld deposit chemistry, impact testing, and heat treatment.
Custom Hastelloy C-276 welding wire By customer requirement and applicable standard By customer requirement and applicable standard By customer requirement and applicable standard Confirm spool size, surface condition, lot traceability, and inspection requirements.







Values shown are reference data for product selection. Purchase orders should define the exact standard, condition, inspection scope and certificate requirement.

Quotation Checklist

Information to confirm for your order

Share your requirements, including material, size, quantity, and specifications, for a fast quotation.

Material

Grade name, UNS number, equivalent grade or project material code.

Pipe Size

OD / NPS, wall thickness or schedule, length, tolerance and quantity.

Standard

ASTM, ASME, EN, DIN, drawing or customer specification.

Condition

Seamless, welded, annealed, solution annealed, pickled or polished.

Inspection

MTC EN10204 3.1, PMI, UT / ET, hydrotest and dimensional report.

Delivery

Destination, packing requirement, shipping method and delivery deadline.

Related Products

Related Products for Hastelloy C-276 Welding Wire

Browse related alloy products and product forms that may suit the same application.

Related Articles

Articles about Hastelloy C-276 Welding Wire standards, material selection and applications

View All
FAQ

Frequently asked questions about Hastelloy C-276 Welding Wire

FAQ content helps cover buyer questions and supports SEO for long-tail product searches.

Hastelloy C-276 Welding Wire is used for joining nickel alloys, stainless steels and dissimilar metals in chemical processing, pollution-control, marine, oil and gas, pharmaceutical and severe corrosion applications.

Hastelloy C-276 Welding Wire is commonly supplied according to AWS A5.14 and ASME SFA-5.14 under the designation ERNiCrMo-4. Other customer or project standards can also be reviewed.

It can be used for GTAW/TIG, GMAW/MIG, orbital welding and other suitable gas-shielded processes, depending on the joint design and approved welding procedure.

Common diameters include 0.8 mm, 1.0 mm, 1.2 mm, 1.6 mm, 2.0 mm and 2.4 mm. Wire can be supplied in spools, coils or straight lengths according to customer requirements.

Quality control may include chemical analysis, surface inspection, dimensional checks, cast and helix testing, lot traceability and welding performance verification according to the purchase specification.

Please provide the wire designation, diameter, welding process, spool or coil size, quantity, standard, packaging, inspection requirements and destination.
