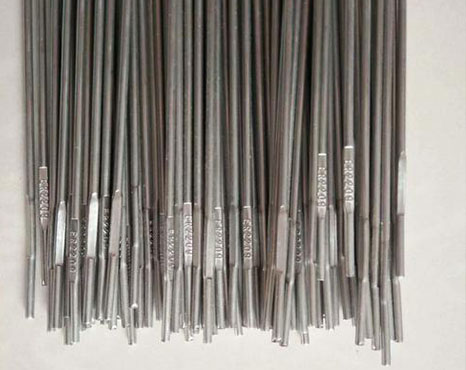

Inconel 600 Welding Wire

Inconel 600 Welding Wire is a nickel-chromium alloy welding material that offers excellent resistance to oxidation, corrosion, and high-temperature service conditions. It produces strong, stable welds and maintains reliable performance when exposed to heat, steam, alkaline solutions, and other aggressive media.
With excellent weldability and resistance to stress corrosion cracking, Inconel 600 Welding Wire is widely used for joining and overlay applications in chemical processing, heat treatment equipment, nuclear power, aerospace, furnace systems, and heat exchangers. Its durability and long service life make it a dependable choice for demanding fabrication and repair work.







Request Quote View Specifications
Product Overview

Inconel 600 Welding Wire for High-Performance Applications

Explore detailed information for this alloy product, including specifications, applications, supply options and quotation requirements.

Why buyers choose Inconel 600 Welding Wire

Inconel 600 Welding Wire is a nickel-chromium alloy welding material that offers excellent resistance to oxidation, corrosion, and high-temperature service conditions. It produces strong, stable welds and maintains reliable performance when exposed to heat, steam, alkaline solutions, and other aggressive media.
With excellent weldability and resistance to stress corrosion cracking, Inconel 600 Welding Wire is widely used for joining and overlay applications in chemical processing, heat treatment equipment, nuclear power, aerospace, furnace systems, and heat exchangers. Its durability and long service life make it a dependable choice for demanding fabrication and repair work.







Inconel 600 Welding Wire
Pipe Specifications

Inconel 600 Welding Wire size range and supply information

Specifications, available sizes and delivery conditions can vary by production route and order requirements. Contact us for current availability.

Item Typical Options Buyer Notes Typical Specification
Material Grade Inconel 600 / UNS N06600 / W.Nr. 2.4816 Confirm the base-metal grade and required welding classification. Nickel-chromium welding alloy for elevated-temperature and corrosive service
Welding Wire Type GTAW / TIG wire, GMAW / MIG wire, pulsed-arc wire or automated welding wire Select the wire type according to the welding process and equipment. Solid wire for joining Inconel 600 and compatible nickel alloys
Wire Diameter 1.0 mm, 1.2 mm, 1.6 mm, 2.4 mm or custom diameter Choose the diameter according to joint thickness, welding current and position. Standard and custom diameters available
Welding Classification AWS A5.14 ERNiCr-3, ASME SFA-5.14 ERNiCr-3 or EN ISO 18274 Confirm the applicable AWS, ASME or EN classification before ordering. ERNiCr-3 / EN ISO Ni6082
Application Inconel 600, nickel alloys, stainless steel, carbon steel and dissimilar-metal joints Check base-metal compatibility and required corrosion and heat resistance. Suitable for chemical processing, furnace, heat-treatment and power equipment
Delivery Condition Bright drawn, annealed, cleaned or precision-layer wound Surface cleanliness and winding quality affect arc stability and wire feeding. Uniform bright surface with controlled dimensional tolerance
Packaging Plastic spool, metal spool, coil, reel or straight length Specify spool size, net weight and packaging requirements for storage and handling. Moisture-resistant packaging with full heat and lot traceability
Inspection & Certification MTC, chemical analysis, tensile test, visual inspection and third-party inspection Confirm certificate format, testing scope and traceability requirements. EN 10204 3.1 certificate and batch test report available







Standards

Common standards for Inconel 600 Welding Wire

The final standard should follow the purchase order, engineering specification or project drawing.

Product Type Common Standards Typical Use Inspection Notes
Inconel 600 MIG Welding Wire AWS A5.14 / ASME SFA-5.14 ERNiCr-3, EN ISO 18274 NiCr20Mn3Nb GMAW welding of Inconel alloys, stainless steel and dissimilar metals Verify chemical composition, wire diameter, spool condition, surface cleanliness and lot traceability.
Inconel 600 TIG Welding Wire AWS A5.14 / ASME SFA-5.14 ERNiCr-3, EN ISO 18274 NiCr20Mn3Nb GTAW welding, repair work and precision fabrication of high-temperature components Inspect straightness, diameter tolerance, surface condition, weldability and material certificates.
Inconel 600 Submerged Arc Welding Wire AWS A5.14 / ASME SFA-5.14 ERNiCr-3, applicable project specifications Heavy-section fabrication, pressure vessels and high-temperature weld overlays Confirm wire-flux compatibility, chemical composition, weld deposit properties and batch identification.
Inconel 600 Welding Wire for Cladding AWS A5.14 / ASME SFA-5.14 ERNiCr-3, ASME Section IX Overlay protection for carbon steel and alloy steel equipment in corrosive or thermal service Check dilution, overlay thickness, bond integrity, PMI, weld deposit properties and NDT results.
Inconel 600 Fine Welding Wire AMS 5687, AWS A5.14 / ASME SFA-5.14 ERNiCr-3 Micro-welding, aerospace repair, instrumentation and precision components Verify fine-wire diameter, dimensional consistency, surface finish, cleanliness and spool traceability.







Chemical Composition

Inconel 600 Welding Wire composition reference

Chemical composition is reported by heat on the material test certificate. Use the table below as a material-selection reference.

Element Symbol Typical Requirement Function
Nickel Ni 72.0 min Provides corrosion resistance, toughness, and high-temperature stability in weld metal.
Chromium Cr 14.0-17.0 Improves oxidation resistance and high-temperature welding performance.
Iron Fe 6.0-10.0 Provides alloy balance and supports weld metal strength.
Carbon C 0.15 max Controlled to maintain weldability, ductility, and corrosion resistance.
Manganese Mn 1.0 max Acts as a deoxidizer and supports weld pool control.
Silicon Si 0.50 max Supports deoxidation and controlled weld bead formation.
Copper Cu 0.50 max Controlled minor element supporting weld metal stability.
Cobalt Co 1.0 max Controlled residual element in the nickel-based welding alloy.
Sulfur S 0.015 max Controlled impurity to reduce hot cracking and weld brittleness.







Mechanical Properties

Mechanical Properties of Inconel 600 Welding Wire

Mechanical properties vary by standard, pipe size, production route and heat treatment. Use the specified standard and MTC as the final acceptance basis.

Product / Condition Tensile Strength Yield Strength 0.2% Elongation Notes
Inconel 600 MIG / TIG welding wire 550 MPa min reference 240 MPa min reference 30% min reference Common ERNiCr-3 reference for joining Inconel 600 and dissimilar nickel alloys.
Inconel 600 filler metal By AWS A5.14 / ASME SFA-5.14 specification By AWS A5.14 / ASME SFA-5.14 specification By AWS A5.14 / ASME SFA-5.14 specification Confirm welding process, wire classification, diameter, and shielding gas.
Inconel 600 submerged-arc welding wire By wire-flux combination and purchase specification By wire-flux combination and purchase specification By wire-flux combination and purchase specification Specify flux type, weld deposit chemistry, impact testing, and heat treatment.
Custom Inconel 600 welding wire By customer requirement and applicable standard By customer requirement and applicable standard By customer requirement and applicable standard Confirm spool size, surface condition, lot traceability, and inspection requirements.







Values shown are reference data for product selection. Purchase orders should define the exact standard, condition, inspection scope and certificate requirement.

Quotation Checklist

Information to confirm for your order

Share your requirements, including material, size, quantity, and specifications, for a fast quotation.

Material

Grade name, UNS number, equivalent grade or project material code.

Pipe Size

OD / NPS, wall thickness or schedule, length, tolerance and quantity.

Standard

ASTM, ASME, EN, DIN, drawing or customer specification.

Condition

Seamless, welded, annealed, solution annealed, pickled or polished.

Inspection

MTC EN10204 3.1, PMI, UT / ET, hydrotest and dimensional report.

Delivery

Destination, packing requirement, shipping method and delivery deadline.

Related Products

Related Products for Inconel 600 Welding Wire

Browse related alloy products and product forms that may suit the same application.

Related Articles

Articles about Inconel 600 Welding Wire standards, material selection and applications

View All
FAQ

Frequently asked questions about Inconel 600 Welding Wire

FAQ content helps cover buyer questions and supports SEO for long-tail product searches.

Inconel 600 Welding Wire is used for joining nickel alloys, stainless steels and dissimilar metals in chemical processing, furnace equipment, heat treatment, aerospace, nuclear and high-temperature applications.

Inconel 600 Welding Wire is commonly supplied according to AWS A5.14 and ASME SFA-5.14 under the designation ERNiCr-3. Other customer or project standards can also be reviewed.

It can be used for GTAW/TIG, GMAW/MIG, orbital welding and other suitable gas-shielded welding processes, depending on the joint design and approved welding procedure.

Common diameters include 0.8 mm, 1.0 mm, 1.2 mm, 1.6 mm, 2.0 mm and 2.4 mm. Wire can be supplied in spools, coils or straight lengths according to customer requirements.

Yes. Inconel 600 Welding Wire can be supplied with an EN10204 3.1 certificate, heat number traceability, chemical composition, mechanical properties and batch inspection records.

Please provide the wire designation, diameter, welding process, spool or coil size, quantity, standard, certificate requirements, packaging and destination.
