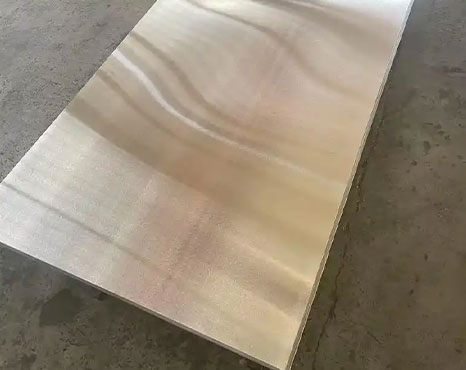

Inconel 600 Sheet

Inconel 600 Sheet is manufactured from a nickel-chromium alloy that offers excellent resistance to oxidation, corrosion, and high-temperature service conditions. It maintains reliable strength and dimensional stability when exposed to heat, steam, alkaline solutions, and other aggressive media.
With excellent formability, weldability, and durability, Inconel 600 Sheet is widely used in chemical processing, heat treatment equipment, nuclear power, aerospace, furnace systems, and heat exchangers. Its resistance to stress corrosion cracking and long service life make it a dependable choice for demanding industrial applications.







Request Quote View Specifications
Product Overview

Inconel 600 Sheet for High-Performance Applications

Explore detailed information for this alloy product, including specifications, applications, supply options and quotation requirements.

Why buyers choose Inconel 600 Sheet

Inconel 600 Sheet is manufactured from a nickel-chromium alloy that offers excellent resistance to oxidation, corrosion, and high-temperature service conditions. It maintains reliable strength and dimensional stability when exposed to heat, steam, alkaline solutions, and other aggressive media.
With excellent formability, weldability, and durability, Inconel 600 Sheet is widely used in chemical processing, heat treatment equipment, nuclear power, aerospace, furnace systems, and heat exchangers. Its resistance to stress corrosion cracking and long service life make it a dependable choice for demanding industrial applications.







Inconel 600 Sheet
Pipe Specifications

Inconel 600 Sheet size range and supply information

Specifications, available sizes and delivery conditions can vary by production route and order requirements. Contact us for current availability.

Item Typical Options Buyer Notes Typical Specification
Material Grade Inconel 600 / UNS N06600 / W.Nr. 2.4816 Confirm the alloy designation, material standard and certification requirements. Nickel-chromium alloy with excellent oxidation and high-temperature resistance
Product Form Cold-rolled sheet, hot-rolled sheet, plate or cut-to-size blank Select the product form according to thickness, tolerance and fabrication requirements. Flat-rolled sheet supplied in standard or custom dimensions
Thickness Thin-gauge sheet to heavy plate within the applicable specification range Provide the required thickness, unit and dimensional tolerance. Standard and custom thicknesses available
Width & Length Standard mill sizes, fixed dimensions or precision-cut pieces Confirm width, length, cutting tolerance and edge requirements. Custom sizes available according to drawings or project specifications
Applicable Standard ASTM B168, ASME SB168, AMS 5540 or project specification Confirm the applicable ASTM, ASME, AMS or customer standard before ordering. ASTM B168 / ASME SB168 / AMS 5540
Delivery Condition Annealed, solution annealed, hot rolled or cold rolled Match the condition to forming, welding, machining and service requirements. Annealed condition commonly supplied
Surface Finish Hot-rolled, cold-rolled, pickled, bright, polished or protective-film coated Specify surface quality requirements for forming, welding or final appearance. Clean, uniform surface with optional protective film
Inspection & Certification MTC, PMI, chemical analysis, tensile test, hardness test, ultrasonic testing and dimensional inspection Confirm testing, traceability and third-party inspection requirements before quotation. EN 10204 3.1 certificate and full heat traceability available







Standards

Common standards for Inconel 600 Sheet

The final standard should follow the purchase order, engineering specification or project drawing.

Product Type Common Standards Typical Use Inspection Notes
Inconel 600 Cold-Rolled Sheet ASTM B168 / ASME SB168, AMS 5540 Heat exchangers, chemical-processing equipment, furnace components and aerospace parts Verify thickness, flatness, surface finish, tensile properties, PMI and heat traceability.
Inconel 600 Hot-Rolled Sheet ASTM B168 / ASME SB168, AMS 5540 Fabricated pressure components, high-temperature ducting and corrosion-resistant structures Inspect dimensions, surface condition, mechanical properties, chemical composition and certificates.
Inconel 600 Plate ASTM B168 / ASME SB168, AMS 5540 Pressure vessels, furnace equipment, reactor components and chemical-processing systems Check thickness tolerance, ultrasonic testing, tensile requirements, PMI and plate traceability.
Inconel 600 Cladding Sheet ASTM B168 / ASME SB168, project specifications Corrosion-resistant lining for carbon-steel vessels, piping and thermal-processing equipment Verify cladding thickness, bond integrity, surface defects, chemical composition and NDT results.
Inconel 600 Perforated Sheet ASTM B168 / ASME SB168, customer drawings Filters, screens, trays and furnace components exposed to high temperatures Inspect hole pattern, pitch, open area, sheet thickness, burrs, flatness and material traceability.







Chemical Composition

Inconel 600 Sheet composition reference

Chemical composition is reported by heat on the material test certificate. Use the table below as a material-selection reference.

Element Symbol Typical Requirement Function
Nickel Ni 72.0 min Provides corrosion resistance, toughness, and resistance to chloride stress corrosion cracking.
Chromium Cr 14.0-17.0 Improves oxidation resistance and high-temperature sheet performance.
Iron Fe 6.0-10.0 Provides alloy balance and contributes to sheet strength.
Carbon C 0.15 max Controlled to maintain formability, ductility, and weldability.
Manganese Mn 1.0 max Acts as a deoxidizer during alloy production.
Silicon Si 0.50 max Controlled to maintain surface quality and fabrication performance.
Copper Cu 0.50 max Controlled minor element supporting alloy stability.
Cobalt Co 1.0 max Controlled residual element in the nickel-based alloy.
Sulfur S 0.015 max Controlled impurity to reduce brittleness and cracking risk.







Mechanical Properties

Mechanical Properties of Inconel 600 Sheet

Mechanical properties vary by standard, pipe size, production route and heat treatment. Use the specified standard and MTC as the final acceptance basis.

Condition / Product Tensile Strength Yield Strength 0.2% Elongation Notes
Annealed Inconel 600 sheet 550 MPa min reference 240 MPa min reference 30% min reference Common selection reference for formed, fabricated, and high-temperature components.
Solution annealed Inconel 600 sheet By ASTM / ASME specification By ASTM / ASME specification By ASTM / ASME specification Suitable when oxidation resistance, corrosion performance, and forming requirements are priorities.
Cold-rolled Inconel 600 sheet By thickness, temper, and purchase specification By thickness, temper, and purchase specification Lower than annealed condition Cold working increases strength and hardness while reducing ductility.
Custom Inconel 600 sheet By customer requirement and applicable standard By customer requirement and applicable standard By customer requirement and applicable standard Confirm thickness tolerance, surface finish, flatness, heat treatment, and inspection requirements.







Values shown are reference data for product selection. Purchase orders should define the exact standard, condition, inspection scope and certificate requirement.

Quotation Checklist

Information to confirm for your order

Share your requirements, including material, size, quantity, and specifications, for a fast quotation.

Material

Grade name, UNS number, equivalent grade or project material code.

Pipe Size

OD / NPS, wall thickness or schedule, length, tolerance and quantity.

Standard

ASTM, ASME, EN, DIN, drawing or customer specification.

Condition

Seamless, welded, annealed, solution annealed, pickled or polished.

Inspection

MTC EN10204 3.1, PMI, UT / ET, hydrotest and dimensional report.

Delivery

Destination, packing requirement, shipping method and delivery deadline.

Related Products

Related Products for Inconel 600 Sheet

Browse related alloy products and product forms that may suit the same application.

Related Articles

Articles about Inconel 600 Sheet standards, material selection and applications

View All
FAQ

Frequently asked questions about Inconel 600 Sheet

FAQ content helps cover buyer questions and supports SEO for long-tail product searches.

Inconel 600 Sheet is used for chemical processing equipment, furnace components, heat treatment systems, nuclear applications, aerospace parts and high-temperature corrosion-resistant structures.

Common standards include ASTM B168 and ASME SB168 for nickel alloy 600 sheet, plate and strip. AMS specifications and customer project requirements can also be reviewed.

Inconel 600 Sheet can be supplied in various thicknesses, widths and lengths, including cut-to-size sheets and custom dimensions according to drawings or application requirements.

Yes. Inconel 600 Sheet can be cut, formed, welded, drilled and fabricated using suitable procedures and tooling designed for nickel alloys.

Yes. Material can be supplied with an EN10204 3.1 certificate, heat number traceability, chemical composition, mechanical test results, PMI and dimensional inspection reports when required.

Please provide the grade, sheet thickness, width, length, quantity, surface finish, manufacturing condition, standard, certificate requirements and destination.

Request Inconel 600 Sheet Quote

Send your pipe size, standard and quantity

For faster feedback, include OD / NPS, wall thickness or schedule, length, quantity, standard, certificate requirement and destination. If you have a drawing or project specification, send it with the inquiry.
