Nickel Alloy Grade Data Sheet

HAYNES 230

HAYNES 230 is a nickel-chromium-tungsten-molybdenum solid-solution-strengthened alloy offering an exceptional combination of high-temperature strength, oxidation resistance, thermal stability and fabricability. It is particularly effective for long-term structural service above approximately 650 °C and can resist continuous exposure to air or combustion gases at temperatures up to about 1150 °C. Typical applications include gas-turbine combustion cans, transition ducts, flame holders, furnace retorts, heat-treatment fixtures, high-temperature bellows, thermocouple protection tubes, catalyst-grid supports, recuperator internals, heat exchangers and industrial furnace components.





Download HAYNES 230 Datasheet Send Inquiry
Material Overview

HAYNES 230 material profile

A concise grade introduction for buyers who need to confirm composition, properties, standards, available forms and suitable applications before sending an inquiry.

Engineering profile

HAYNES 230 is a nickel-chromium-tungsten-molybdenum solid-solution-strengthened alloy offering an exceptional combination of high-temperature strength, oxidation resistance, thermal stability and fabricability. It is particularly effective for long-term structural service above approximately 650 °C and can resist continuous exposure to air or combustion gases at temperatures up to about 1150 °C. Typical applications include gas-turbine combustion cans, transition ducts, flame holders, furnace retorts, heat-treatment fixtures, high-temperature bellows, thermocouple protection tubes, catalyst-grid supports, recuperator internals, heat exchangers and industrial furnace components.

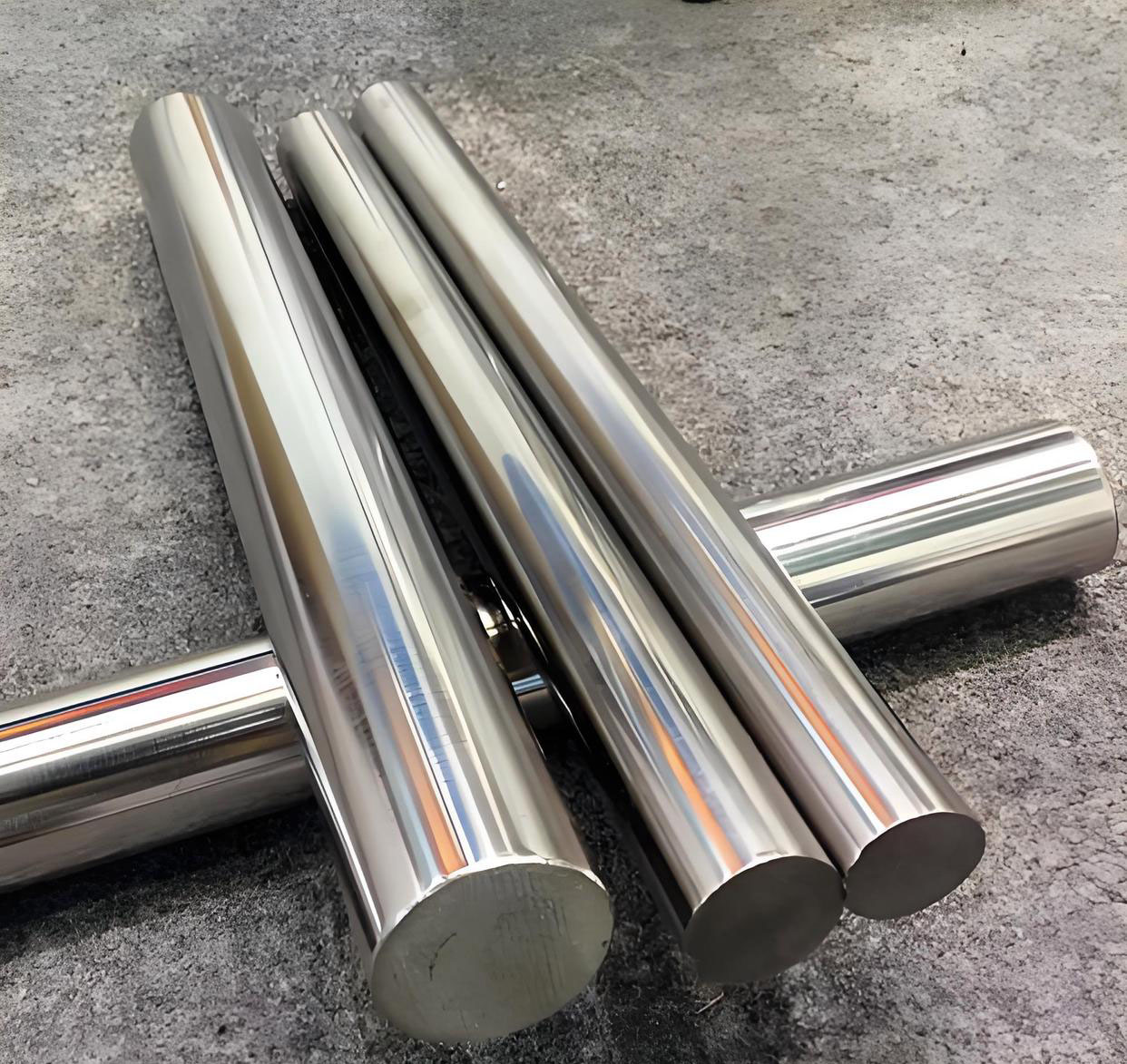

HAYNES 230

Technical data on this page is for material selection reference. Final acceptance values should be confirmed by the purchase standard, heat treatment condition, product form, size and material test certificate.

Chemical Composition

HAYNES 230 composition range

The following table shows common limiting composition values for Alloy 625 / UNS N06625. Actual product chemistry is reported by heat on the material test certificate.

Element Symbol Nominal Content (%) Role in HAYNES 230
Nickel Ni Balance, approximately 57 Forms the stable austenitic matrix and supports high-temperature fabricability.
Chromium Cr 22 Provides oxidation, combustion-gas and general high-temperature corrosion resistance.
Tungsten W 14 Provides strong solid-solution strengthening and creep resistance.
Molybdenum Mo 2 Contributes solid-solution strength and environmental resistance.
Iron Fe 3.0 max Controlled residual and processing-related element.
Cobalt Co 5.0 max Controlled alloying element contributing to matrix stability.
Manganese Mn 0.50 Supports melting practice and deoxidation control.
Silicon Si 0.40 Supports oxidation behavior and melting practice.
Niobium Nb 0.50 max Controlled minor element affecting carbide and phase behavior.
Aluminum Al 0.30 Supports oxidation resistance and scale stability.
Titanium Ti 0.10 max Controlled minor element.
Carbon C 0.10 Supports carbide strengthening and high-temperature creep properties.
Lanthanum La 0.02 Improves adherence and durability of the protective oxide scale.
Boron B 0.015 max Controlled minor addition affecting grain-boundary behavior.





Physical Properties

Key physical and thermal data

These values help customers compare density, thermal behavior, magnetic response and conductivity during early material selection.

Property Metric Value Imperial / Notes Condition
Density 8.97 g/cm3 0.324 lb/in3 Room temperature
Melting Range 1301-1371 °C 2375-2500 °F Typical range
Electrical Resistivity Approx. 1.25 µΩ·m Approx. 125 µΩ·cm Room temperature
Thermal Conductivity 8.9 W/m·°C 62 Btu·in/ft2·h·°F Room temperature
Specific Heat 397 J/kg·°C 0.095 Btu/lb·°F Room temperature
Dynamic Modulus of Elasticity 209 GPa 30.3 x 103 ksi Room temperature
Dynamic Modulus of Elasticity 150 GPa Approx. 21.8 x 103 ksi Approx. 900 °C
Mean CTE, 25-100 °C 11.8 µm/m·°C 6.5 µin/in·°F Representative manufacturer data
Mean CTE, 25-400 °C 13.2 µm/m·°C 7.4 µin/in·°F Representative manufacturer data
Mean CTE, 25-600 °C 14.1 µm/m·°C 8.0 µin/in·°F Representative manufacturer data
Mean CTE, 25-800 °C 15.2 µm/m·°C 8.6 µin/in·°F Representative manufacturer data
Mean CTE, 25-1000 °C 16.1 µm/m·°C Temperature-range dependent Representative manufacturer data





Mechanical Properties

Room-temperature mechanical properties

Mechanical properties vary with product form, size, processing route and heat treatment. The table below summarizes commonly referenced nominal values for material selection.

Product / Test Condition Tensile Strength Yield Strength, 0.2% Elongation Hardness
Solution-annealed plate, room temperature Approx. 852 MPa / 123.6 ksi Approx. 383 MPa / 55.5 ksi Approx. 46.0% Approx. 92 HRBW
Solution-annealed sheet, room temperature Approx. 837 MPa / 121.4 ksi Approx. 417 MPa / 60.4 ksi Approx. 47.3% Approx. 92 HRBW
Solution-annealed plate, 649 °C Approx. 677 MPa / 98.2 ksi Approx. 267 MPa / 38.7 ksi Approx. 53.0% Temperature dependent
Solution-annealed plate, 760 °C Approx. 533 MPa / 77.2 ksi Approx. 260 MPa / 37.7 ksi Approx. 68.0% Temperature dependent
Solution-annealed plate, 871 °C Approx. 311 MPa / 45.1 ksi Approx. 234 MPa / 33.9 ksi Approx. 94.0% Temperature dependent
GTAW transverse weld, room temperature Approx. 827-874 MPa Approx. 440-452 MPa Approx. 27-37% Welding-procedure dependent





For pressure equipment, aerospace parts or project-specific acceptance, use the minimum requirements in the specified ASTM, ASME, AMS, EN or customer drawing rather than nominal values.

Standards & Specifications

Common HAYNES 230 standards by product form

YSN128 can quote Alloy 625 products according to ASTM, ASME, AMS, EN, DIN, ISO or customer drawing requirements. Certificate scope can be matched to the purchase order.

Product Form Common Standards Typical Supply Item Certificate / Inspection
Sheet, Plate and Strip ASTM B435 / ASME SB435, AMS 5878 Solution-treated sheet, plate, strip and cut blanks EN 10204 3.1, chemistry, tensile test and heat-treatment record
Billet, Rod and Bar ASTM B572 / ASME SB572, ASTM B472, AMS 5891 Billet, round bar, rod and machined bar stock MTC, dimensional inspection and traceability
Seamless Pipe & Tube ASTM B622 / ASME SB622 Seamless pipe, tube and thermocouple protection tube Hydrotest or NDT, dimensional inspection and MTC
Welded Pipe & Tube ASTM B619 / ASME SB619, ASTM B626 / ASME SB626 Welded pipe, tube and fabricated tubular components Weld inspection, NDT, heat treatment and MTC
Forgings and Flanges ASTM B564 / ASME SB564, AMS 5891 Rings, discs, blocks, flanges and custom forgings Heat-treatment record, mechanical testing and optional UT
Fittings ASTM B366 / ASME SB366 Elbows, tees, reducers, caps and custom fittings PMI, dimensional inspection, NDT and MTC
Bare Welding Rod and Wire AWS A5.14 / ASME SFA-5.14 ERNiCrWMo-1, AMS 5839 HAYNES 230-W GTAW and GMAW filler metal, UNS N06231 Chemical analysis, tensile test and lot traceability
Coated Electrodes AWS A5.11 / ASME SFA-5.11 ENiCrWMo-1 Shielded metal-arc welding electrodes Lot certificate and welding-procedure qualification
Pressure Equipment Applicable ASME section and current Code Cases Pressure vessels, boilers, piping, valves and fittings Use current design allowables, weld-strength reduction factors and service-specific limits.





Available Product Forms

HAYNES 230 supply range

Review available product forms, size ranges, standards and delivery options for this alloy.

Form Common Size Range Delivery Condition Typical Applications Page Link
Pipe & Tube OD 6-610 mm, wall thickness or schedule to specification Seamless or welded, solution treated, pickled or bright annealed Thermocouple protection, furnace retorts, heat exchangers and process internals View Pipe & Tube
Round Bar Diameter 3-300 mm, larger custom forgings available Hot worked, forged, solution treated, peeled or ground Furnace fixtures, shafts, fasteners, catalyst supports and machined components View Round Bar
Sheet & Plate Thickness 0.5-100 mm, custom widths and lengths Cold rolled or hot rolled, solution treated and rapidly cooled Combustion cans, transition ducts, retorts, trays and heat exchangers View Sheet & Plate
Strip & Foil Thickness 0.02-3 mm, slit widths to specification Cold rolled, solution treated, bright finished or controlled temper Bellows, seals, thin liners, honeycomb structures and formed components View Strip & Foil
Wire Diameter 0.1-12 mm, coil, spool or straight length Cold drawn, solution treated or processing-specific condition Mesh, furnace chains, wire forms, springs and fixture components View Wire
Fasteners Standard and custom bolts, nuts, screws, studs and washers Machined or thread rolled with project-specified heat treatment Furnace equipment, gas turbines and elevated-temperature assemblies View Fasteners
Fittings ASME, ASTM and custom drawing dimensions Seamless or welded, solution treated and machined High-temperature process piping, furnaces and heat-exchanger systems View Fittings
Flanges ASME B16.5, B16.47 or drawing-based dimensions Forged, solution treated, machined and inspected Pressure piping, furnace systems, valves and high-temperature equipment View Flanges
Forgings Rings, discs, blocks, shafts and drawing-based components Forged, solution treated, rough machined or finish machined Pressure components, turbine hardware and highly loaded furnace parts View Forgings
Welding Wire Diameter 0.76-4.7 mm, spool, reel, coil or straight length Clean bright HAYNES 230-W filler metal, UNS N06231 GTAW and GMAW joining of HAYNES 230 and selected dissimilar alloys View Welding Wire





Material Selection Guide

When to consider HAYNES 230

This guide helps buyers connect service conditions with the typical advantage of Alloy 625. Final selection should consider medium concentration, temperature, pressure, fabrication, availability and budget.

Service Requirement Recommended Alloy Reason for Selection Buyer Note
High creep strength and oxidation resistance above 650 °C HAYNES 230 Provides an effective balance of load-bearing strength, stability and environmental resistance. Use time-temperature-stress data for final component design.
Long-term air or combustion-gas exposure up to 1150 °C HAYNES 230 Offers excellent cyclic and continuous oxidation resistance with good fabricability. Confirm load, atmosphere, thermal cycling and required service life.
Maximum oxidation resistance in relatively low-stress service HAYNES 214 Its alumina-rich scale provides exceptional oxidation resistance above approximately 955 °C. HAYNES 214 generally has lower structural strength at the highest temperatures.
Established cobalt-base gas-turbine combustor alloy HAYNES 188 Provides strong high-temperature performance and extensive aerospace service history. HAYNES 230 may provide improved thermal stability in selected applications.
ASME high-temperature pressure construction HAYNES 230 or Alloy 617 Both have established pressure-code applications and high-temperature strength. Compare the current code coverage, allowable stresses and service environment.
Aqueous chloride or reducing-acid corrosion Select Alloy 625 or a Hastelloy corrosion-resistant grade HAYNES 230 is primarily optimized for high-temperature strength and gaseous environments. Provide the complete process chemistry, concentration and temperature.





Why Choose Us

Supply and quality support for HAYNES 230

For ranking traffic, buyers need more than a data sheet. This section gives clear trust signals for procurement, engineering and quality teams.

STASTM / ASME / AMS / EN

Quotation can be matched to project standards and product form specifications.

MTEN10204 3.1 MTC

Heat number, chemistry, mechanical properties and inspection records can be supplied.

QCPMI & Inspection

PMI, UT, dimensional inspection, visual inspection and packing check are available.

CSCustom Size

Cutting, machining allowance, rough machining and drawing-based supply can be arranged.

EPExport Packing

Wooden case, bundle, waterproof protection and international shipping documents.

RFFast Technical Reply

Send grade, size, standard, quantity and destination for a practical quotation route.

Related Nickel Alloys

Compare nearby grades and product forms

Explore related grades and product forms for comparison.

FAQ

HAYNES 230 questions from buyers

Find practical answers about procurement, standards, fabrication and industrial applications.

HAYNES 230 is used for gas-turbine combustion cans, transition ducts, flame holders, furnace retorts, heat-treatment fixtures, high-temperature bellows, thermocouple protection tubes, catalyst-grid supports, recuperators and heat exchangers.

Yes. UNS N06230 is the standardized designation for HAYNES 230 base material. HAYNES 230-W matching filler metal is identified separately as UNS N06231.

The alloy can provide continuous oxidation resistance in air or combustion gases up to approximately 1150 °C. Allowable structural or pressure-design temperatures are lower and must be determined from creep data, ASME rules and the applicable Code Cases.

HAYNES 230 is nickel based, while HAYNES 188 is cobalt based. Both provide high-temperature strength and oxidation resistance, but HAYNES 230 generally offers excellent long-term phase stability, lower thermal expansion and broad ASTM and ASME product coverage.

YSN128 can quote plate, sheet, strip, round bar, rod, wire, seamless or welded pipe and tube, forgings, flanges, fittings, fasteners and HAYNES 230-W matching welding wire.

Common standards include ASTM B435 and AMS 5878 for plate and sheet, ASTM B572 and AMS 5891 for bar, ASTM B622 for seamless tube, ASTM B619 or B626 for welded tubular products, ASTM B564 for forgings and ASTM B366 for fittings.

Yes. HAYNES 230 can be welded by GTAW, GMAW, SMAW and resistance-welding methods. ERNiCrWMo-1 HAYNES 230-W filler is recommended, preheating is normally unnecessary, and interpass temperature should generally remain below 93 °C.

Please send the UNS or alloy grade, product form, dimensions, quantity, ASTM, ASME or AMS specification, delivery condition, operating temperature, design pressure or load, inspection requirements, certificate type and destination.
