Nickel Alloy Grade Data Sheet

HAYNES 214

HAYNES 214 is a nickel-chromium-aluminum-iron wrought alloy developed for exceptional oxidation resistance in high-temperature, relatively low-stress service. At approximately 955 °C and above, its aluminum content promotes a tightly adherent alumina-rich protective scale that resists oxidation, carburization, nitriding and selected chlorine-bearing oxidizing environments. Typical applications include furnace mesh belts, trays, fixtures, refractory anchors, flame hoods, rotary calciner components, ceramic-firing equipment, gas-turbine honeycomb seals, combustor splash plates, catalytic-converter internals and high-temperature incinerator components.





Download HAYNES 214 Datasheet Send Inquiry
Material Overview

HAYNES 214 material profile

A concise grade introduction for buyers who need to confirm composition, properties, standards, available forms and suitable applications before sending an inquiry.

Engineering profile

HAYNES 214 is a nickel-chromium-aluminum-iron wrought alloy developed for exceptional oxidation resistance in high-temperature, relatively low-stress service. At approximately 955 °C and above, its aluminum content promotes a tightly adherent alumina-rich protective scale that resists oxidation, carburization, nitriding and selected chlorine-bearing oxidizing environments. Typical applications include furnace mesh belts, trays, fixtures, refractory anchors, flame hoods, rotary calciner components, ceramic-firing equipment, gas-turbine honeycomb seals, combustor splash plates, catalytic-converter internals and high-temperature incinerator components.

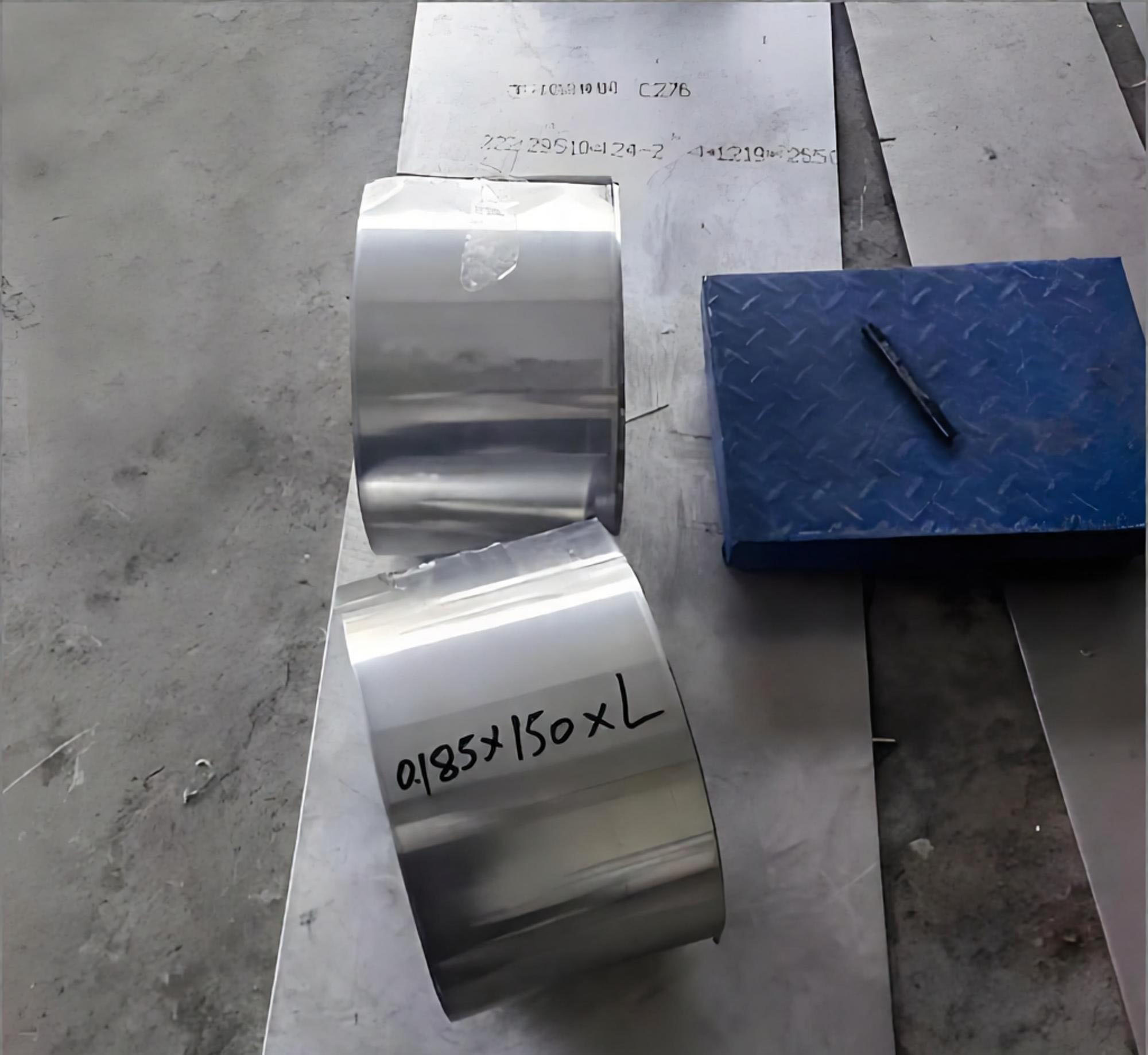

HAYNES 214

Technical data on this page is for material selection reference. Final acceptance values should be confirmed by the purchase standard, heat treatment condition, product form, size and material test certificate.

Chemical Composition

HAYNES 214 composition range

The following table shows common limiting composition values for Alloy 625 / UNS N06625. Actual product chemistry is reported by heat on the material test certificate.

Element Symbol Nominal Content (%) Role in HAYNES 214
Nickel Ni Balance, approximately 75 Forms the austenitic matrix and supports high-temperature stability.
Chromium Cr 16 Supports oxidation resistance, particularly below the alumina-forming temperature range.
Aluminum Al 4.5 Promotes formation of the protective Al2O3-rich surface scale.
Iron Fe 3 Controlled component of the nickel-base matrix.
Cobalt Co 2.0 max Controlled minor alloying element.
Manganese Mn 0.50 max Supports melting practice and deoxidation control.
Molybdenum Mo 0.50 max Controlled residual element.
Titanium Ti 0.50 max Controlled because it can influence gamma-prime formation.
Tungsten W 0.50 max Controlled residual element.
Niobium Nb 0.15 max Controlled minor element affecting phase stability.
Silicon Si 0.20 max Controlled for oxidation behavior and weldability.
Zirconium Zr 0.10 max Controlled minor addition affecting grain-boundary behavior.
Carbon C 0.04 Contributes carbide formation and metallurgical stability.
Boron B 0.01 max Controlled minor addition affecting grain boundaries.
Yttrium Y 0.01 Improves adhesion and durability of the protective oxide scale.





Physical Properties

Key physical and thermal data

These values help customers compare density, thermal behavior, magnetic response and conductivity during early material selection.

Property Metric Value Imperial / Notes Condition
Density 8.05 g/cm3 0.291 lb/in3 Room temperature
Melting Range 1355-1400 °C 2475-2550 °F Typical range
Electrical Resistivity Approx. 1.36 µΩ·m Approx. 135.9 µΩ·cm Room temperature
Thermal Conductivity 12.0 W/m·°C 83 Btu·in/ft2·h·°F Room temperature
Specific Heat 452 J/kg·°C 0.108 Btu/lb·°F Room temperature
Dynamic Modulus of Elasticity 218 GPa 31.6 x 103 ksi Room temperature
Dynamic Modulus of Elasticity 151 GPa Approx. 21.9 x 103 ksi Approx. 900 °C
Mean CTE, 25-200 °C 13.3 µm/m·°C 7.4 µin/in·°F Representative manufacturer data
Mean CTE, 25-400 °C 14.1 µm/m·°C 7.9 µin/in·°F Representative manufacturer data
Mean CTE, 25-600 °C 15.2 µm/m·°C 8.6 µin/in·°F Representative manufacturer data
Mean CTE, 25-800 °C 16.6 µm/m·°C 9.6 µin/in·°F Representative manufacturer data
Mean CTE, 25-1000 °C 18.6 µm/m·°C 11.1 µin/in·°F Representative manufacturer data





Mechanical Properties

Room-temperature mechanical properties

Mechanical properties vary with product form, size, processing route and heat treatment. The table below summarizes commonly referenced nominal values for material selection.

Product / Test Condition Tensile Strength Yield Strength, 0.2% Elongation Hardness
Cold-rolled sheet, solution annealed, room temperature Approx. 975 MPa / 141.4 ksi Approx. 577 MPa / 83.6 ksi Approx. 37.3% Approx. 98 HRBW
Hot-rolled plate, solution annealed, room temperature Approx. 960 MPa / 138.9 ksi Approx. 565 MPa / 82.2 ksi Approx. 42.8% Approx. 100 HRBW
Solution-annealed sheet, 649 °C Approx. 756 MPa / 109.6 ksi Approx. 537 MPa / 77.9 ksi Approx. 22.2% Temperature dependent
Solution-annealed sheet, 760 °C Approx. 608 MPa / 88.2 ksi Approx. 498 MPa / 72.3 ksi Approx. 20.4% Temperature dependent
Solution-annealed sheet, 871 °C Approx. 341 MPa / 49.5 ksi Approx. 279 MPa / 40.5 ksi Approx. 49.4% Temperature dependent
GTAW transverse weld, room temperature Approx. 855 MPa / 124 ksi Approx. 558 MPa / 81 ksi Approx. 22% Welding-procedure dependent





For pressure equipment, aerospace parts or project-specific acceptance, use the minimum requirements in the specified ASTM, ASME, AMS, EN or customer drawing rather than nominal values.

Standards & Specifications

Common HAYNES 214 standards by product form

YSN128 can quote Alloy 625 products according to ASTM, ASME, AMS, EN, DIN, ISO or customer drawing requirements. Certificate scope can be matched to the purchase order.

Scope Common Standard / Requirement Application Buyer Note
Base Alloy Products Producer specification or customer-approved material specification Sheet, plate, strip, bar, rod and fabricated components Haynes International does not list a generic ASTM or AMS base-material specification for N07214.
Structural Welding Wire HAYNES PS-6076-2, UNS N07214 Matching-composition GTAW and GMAW filler metal This is a producer specification rather than a generic AWS classification.
Room-Temperature Tensile Testing ASTM E8/E8M Tensile strength, yield strength and elongation testing Use the current project-approved edition and agreed specimen orientation.
Elevated-Temperature Tensile Testing ASTM E21 Elevated-temperature tensile-property evaluation Specify test temperature, strain rate and hold requirements.
Thermal Expansion Testing ASTM E228 Mean coefficient of linear thermal expansion Specify the complete temperature interval and material condition.
Pipe, Tube, Fittings and Flanges Customer drawing or project specification Drawing-based tubing, pipe, fittings, flanges and fabricated assemblies No generic pressure-product standard is listed for HAYNES 214.
Inspection Documents EN 10204 3.1 or agreed producer certificate Chemical analysis, mechanical testing, heat treatment and traceability Confirm NDT, grain size and oxidation-test requirements before ordering.





Available Product Forms

HAYNES 214 supply range

Review available product forms, size ranges, standards and delivery options for this alloy.

Form Common Size Range Delivery Condition Typical Applications Page Link
Pipe & Tube Precision small-bore to large drawing-based dimensions Seamless or fabricated, solution treated and rapidly cooled High-temperature furnace systems, burner components and calciner assemblies View Pipe & Tube
Round Bar Diameter 3-300 mm, subject to production review Hot worked, solution treated, peeled, ground or machined Refractory anchors, furnace hardware and machined oxidation-resistant parts View Round Bar
Sheet & Plate Thickness 0.5-100 mm, custom widths and lengths Cold rolled or hot rolled, solution treated and rapidly cooled Furnace liners, trays, flame hoods, splash plates and calciner components View Sheet & Plate
Strip & Foil Thickness 0.02-3 mm, slit widths to specification Cold rolled, solution treated, bright finished or controlled temper Honeycomb seals, mesh belts, thin liners and catalytic-converter internals View Strip & Foil
Wire Diameter 0.1-12 mm, subject to quantity and production review Cold drawn, solution treated or processing-specific condition Mesh belts, wire forms, furnace fixtures and refractory anchors View Wire
Fasteners Standard-style and drawing-based bolts, nuts, screws and studs Machined or thread rolled with project-specific heat treatment Low-stress furnace equipment and high-temperature oxidizing assemblies View Fasteners
Fittings Drawing-based elbows, tees, reducers and special connectors Formed, machined or welded, solution treated as specified Furnace-gas systems, burner equipment and calciner assemblies View Fittings
Flanges Custom diameters, thicknesses and drilling patterns Plate-cut or forged, solution treated and machined Furnace interfaces and specialized high-temperature equipment View Flanges
Forgings Rings, discs, blocks and drawing-based components Hot worked, solution treated, rough machined or finish machined Specialized furnace hardware and oxidation-limited static components View Forgings
Welding Wire Diameter 0.76-4.7 mm, spool, reel, coil or straight length Clean bright finish with matching controlled chemistry GTAW and GMAW joining of HAYNES 214 structures View Welding Wire





Material Selection Guide

When to consider HAYNES 214

This guide helps buyers connect service conditions with the typical advantage of Alloy 625. Final selection should consider medium concentration, temperature, pressure, fabrication, availability and budget.

Service Requirement Recommended Alloy Reason for Selection Buyer Note
Maximum oxidation resistance above 955 °C HAYNES 214 Forms a tightly adherent alumina-rich scale with exceptional resistance to oxidation and exfoliation. Confirm that mechanical loads remain within the alloy’s high-temperature strength limits.
Very high-temperature, relatively low-stress furnace component HAYNES 214 Useful oxidation resistance can extend to approximately 1260 °C during long exposure. Temperature capability depends on atmosphere, thermal cycling and section thickness.
High-temperature structural load and creep strength HAYNES 230 or HAYNES 188 These alloys generally provide a stronger balance of creep strength and oxidation resistance. Use time-temperature-stress data for final selection.
Oxidizing chlorine-contaminated environment HAYNES 214 The alumina-rich scale can provide strong resistance in selected high-temperature oxidizing chlorine service. Confirm chlorine content, oxygen potential, deposits and temperature.
Moderate-temperature oxidation service Alloy 601 or HAYNES 230 These grades may be more practical where the full alumina-forming advantage of HAYNES 214 is not developed. Compare strength, fabrication, availability and total operating cost.
Aqueous chemical corrosion service Select a corrosion-resistant nickel alloy HAYNES 214 is optimized for high-temperature gaseous environments rather than broad aqueous corrosion resistance. Provide the complete chemical composition, concentration and temperature.





Why Choose Us

Supply and quality support for HAYNES 214

For ranking traffic, buyers need more than a data sheet. This section gives clear trust signals for procurement, engineering and quality teams.

STASTM / ASME / AMS / EN

Quotation can be matched to project standards and product form specifications.

MTEN10204 3.1 MTC

Heat number, chemistry, mechanical properties and inspection records can be supplied.

QCPMI & Inspection

PMI, UT, dimensional inspection, visual inspection and packing check are available.

CSCustom Size

Cutting, machining allowance, rough machining and drawing-based supply can be arranged.

EPExport Packing

Wooden case, bundle, waterproof protection and international shipping documents.

RFFast Technical Reply

Send grade, size, standard, quantity and destination for a practical quotation route.

Related Nickel Alloys

Compare nearby grades and product forms

Explore related grades and product forms for comparison.

FAQ

HAYNES 214 questions from buyers

Find practical answers about procurement, standards, fabrication and industrial applications.

HAYNES 214 is used for furnace mesh belts, trays, fixtures, refractory anchors, flame hoods, rotary calciners, ceramic-firing equipment, gas-turbine honeycomb seals, combustor splash plates, catalytic-converter internals and high-temperature incinerator components.

Yes. UNS N07214 is the standardized UNS designation for HAYNES 214, a nickel-chromium-aluminum-iron high-temperature oxidation-resistant alloy.

The alloy can provide long-term oxidation resistance in air or combustion gases up to approximately 1260 °C and useful short-term resistance near 1315 °C. These values describe environmental resistance, not allowable load-bearing temperature.

At approximately 955 °C and above, its aluminum content promotes a thin, tightly adherent Al2O3-rich protective scale. This scale grows slowly and resists spalling during prolonged high-temperature exposure.

YSN128 can quote sheet, plate, strip, foil, bar, rod, wire and matching welding wire. Drawing-based tubes, fasteners, fittings, flanges and forgings can be reviewed for custom production.

No generic ASTM or AMS base-material specification is currently listed by Haynes International for UNS N07214. Base products should be ordered to an agreed producer or customer specification, while structural matching filler wire is available to HAYNES PS-6076-2.

Yes. It can be welded by GTAW, GMAW, SMAW and plasma-arc processes. Heat input and restraint must be minimized, interpass temperature should remain low, and qualified procedures should address its susceptibility to strain-age cracking.

Please send the UNS or alloy grade, product form, dimensions, quantity, operating temperature, atmosphere, design load, thermal-cycle details, delivery condition, inspection requirements, certificate type and destination. Drawings and welding requirements should be supplied for finished components.
