Nickel Alloy Grade Data Sheet

Inconel 617

Inconel 617 is a solid-solution-strengthened nickel-chromium-cobalt-molybdenum alloy developed for high-temperature strength, oxidation resistance and metallurgical stability. The combination of nickel, chromium, cobalt and molybdenum provides useful creep and stress-rupture properties together with resistance to carburizing and oxidizing atmospheres. Alloy 617 is commonly supplied for gas turbines, industrial furnaces, heat-treatment equipment, petrochemical processing, power-generation systems and other high-temperature fabricated components.







Download Inconel 617 Datasheet Send Inquiry
Material Overview

Inconel 617 material profile

A concise grade introduction for buyers who need to confirm composition, properties, standards, available forms and suitable applications before sending an inquiry.

Engineering profile

Inconel 617 is a solid-solution-strengthened nickel-chromium-cobalt-molybdenum alloy developed for high-temperature strength, oxidation resistance and metallurgical stability. The combination of nickel, chromium, cobalt and molybdenum provides useful creep and stress-rupture properties together with resistance to carburizing and oxidizing atmospheres. Alloy 617 is commonly supplied for gas turbines, industrial furnaces, heat-treatment equipment, petrochemical processing, power-generation systems and other high-temperature fabricated components.







Inconel 617

Technical data on this page is for material selection reference. Final acceptance values should be confirmed by the purchase standard, heat treatment condition, product form, size and material test certificate.

Chemical Composition

Inconel 617 composition range

The following table shows common limiting composition values for Alloy 625 / UNS N06625. Actual product chemistry is reported by heat on the material test certificate.

Element Symbol Typical Requirement Role in Alloy 617
Nickel Ni 44.5 min, balance Forms the alloy base and provides corrosion resistance and metallurgical stability.
Chromium Cr 20.0-24.0 Provides resistance to oxidation and high-temperature corrosion.
Cobalt Co 10.0-15.0 Improves high-temperature strength and structural stability.
Molybdenum Mo 8.0-10.0 Provides solid-solution strengthening and improves resistance to localized corrosion.
Iron Fe 3.0 max Controlled to maintain the intended nickel-base structure and performance.
Aluminum Al 0.80-1.50 Supports formation of a protective oxide scale at elevated temperatures.
Carbon C 0.05-0.15 Contributes to carbide strengthening and high-temperature creep performance.
Manganese Mn 0.50 max Controlled minor alloying and deoxidizing element.
Silicon Si 0.50 max Controlled minor element and deoxidizer.
Titanium Ti 0.60 max Controlled minor element that can influence carbide and microstructural stability.
Copper Cu 0.50 max Controlled residual element.
Boron B 0.006 max Controlled in small quantities to support grain-boundary strength.
Sulfur S 0.015 max Restricted impurity for improved hot workability and material quality.







Physical Properties

Key physical and thermal data

These values help customers compare density, thermal behavior, magnetic response and conductivity during early material selection.

Property Metric Value Imperial / Notes Condition
Density 8.36 g/cm3 0.302 lb/in3 Room temperature
Melting Range 1330-1380 °C 2425-2515 °F Typical range
Specific Heat Approx. 419 J/kg·°C Approx. 0.100 Btu/lb·°F Approx. 20 °C
Thermal Conductivity Approx. 13.4 W/m·°C Approx. 93 Btu·in/ft2·h·°F Approx. 20 °C
Electrical Resistivity Approx. 122 µΩ·cm Approx. 734 ohm-cmil/ft Approx. 20 °C
Modulus of Elasticity Approx. 211 GPa Approx. 30.6 x 103 ksi Room temperature
Mean Thermal Expansion Approx. 11.6 µm/m·°C Approx. 6.4 µin/in·°F 20-100 °C
Magnetic Permeability Approx. 1.001 Essentially non-magnetic Room temperature, condition dependent







Mechanical Properties

Room-temperature mechanical properties

Mechanical properties vary with product form, size, processing route and heat treatment. The table below summarizes commonly referenced nominal values for material selection.

Product Form / Condition Tensile Strength Yield Strength, 0.2% Elongation Hardness
Plate, sheet and strip – solution annealed 655 MPa min 240 MPa min 35% min By specification
Rod and bar – solution annealed 655 MPa min 240 MPa min 30% min By specification
Rod and bar – cold worked 760-1100 MPa 450-850 MPa 15-30% Condition dependent
Seamless pipe and tube – solution annealed 655 MPa min 240 MPa min 30% min By specification
Wire – annealed 655-900 MPa 240-500 MPa 30-45% By size and condition
Forgings and rings – solution annealed 655 MPa min 240 MPa min 25% min By specification







For pressure equipment, aerospace parts or project-specific acceptance, use the minimum requirements in the specified ASTM, ASME, AMS, EN or customer drawing rather than nominal values.

Standards & Specifications

Common Inconel 617 standards by product form

YSN128 can quote Alloy 625 products according to ASTM, ASME, AMS, EN, DIN, ISO or customer drawing requirements. Certificate scope can be matched to the purchase order.

Product Form Common Standards Typical Supply Item Certificate / Inspection
Plate, Sheet, Strip ASTM B168 / ASME SB168, AMS 5887 Hot rolled plate, cold rolled sheet, strip and cut blanks EN10204 3.1, chemical analysis and mechanical testing
Rod, Bar and Wire ASTM B166 / ASME SB166, AMS 5888 Round bar, rod, wire, machined bar and cut lengths MTC, PMI, tensile testing and dimensional inspection
Seamless Pipe & Tube ASTM B167 / ASME SB167 Seamless pipe, process tube and heat-exchanger tube Hydrostatic test, eddy-current test and MTC
Forgings and Rings ASTM B564 / ASME SB564, AMS 5888 Rings, discs, blocks, shafts and custom forgings Heat-treatment record, ultrasonic testing, PMI and MTC
Fittings ASTM B366 / ASME SB366 Elbows, tees, reducers, caps and drawing-based fittings PMI, dimensional inspection, penetrant testing and MTC
Welding Products AWS A5.14 ERNiCrCoMo-1, AWS A5.11 ENiCrCoMo-1 Matching welding wire, bare electrodes and covered electrodes Chemical analysis, mill certificate and dimensional inspection







Available Product Forms

Inconel 617 supply range

Review available product forms, size ranges, standards and delivery options for this alloy.

Form Common Size Range Delivery Condition Typical Applications Page Link
Pipe & Tube OD 6-762 mm, wall thickness or schedule to specification Seamless or welded, solution annealed, pickled or bright annealed Furnace systems, petrochemical piping, heat exchangers and hot-gas components View Pipe & Tube
Round Bar Diameter 3-500 mm, custom cut lengths available Hot rolled, forged, solution annealed, peeled or polished Shafts, turbine parts, valve components and machined high-temperature parts View Round Bar
Sheet & Plate Thickness 0.5-150 mm, custom widths and lengths Hot rolled, cold rolled, solution annealed, pickled or polished Combustion chambers, furnace liners, heat shields and pressure components View Sheet & Plate
Strip & Foil Thickness 0.02-5 mm, precision slit widths available Cold rolled, solution annealed, bright finished or coil supplied High-temperature seals, flexible components, shields and formed parts View Strip & Foil
Wire Diameter 0.1-20 mm, coil, spool or straight-length supply Cold drawn, solution annealed, bright or pickled Wire forms, furnace components, mesh and welding-product manufacture View Wire
Fasteners Standard and custom bolts, nuts, screws, studs and washers Solution annealed, machined, rolled thread or custom finished Industrial furnaces, turbines, petrochemical plants and hot-gas systems View Fasteners
Fittings ASME, ANSI, EN and custom drawing dimensions Seamless, welded, formed or machined, solution annealed High-temperature piping, chemical processing and furnace connections View Fittings
Flanges ASME B16.5, ASME B16.47, EN and custom large-diameter designs Forged, solution annealed, machined and inspected Pressure vessels, hot process piping and power-generation systems View Flanges
Forgings Rings, discs, blocks and shafts up to 2000 mm or drawing requirements Open-die or closed-die forged, solution annealed and machined Gas-turbine components, pressure parts and high-temperature industrial equipment View Forgings
Welding Wire Diameter 0.8-4.0 mm, spool, coil or straight length Precision drawn, clean bright finish and controlled chemistry Joining Alloy 617, high-temperature fabrication and overlay cladding View Welding Wire







Material Selection Guide

When to consider Inconel 617

This guide helps buyers connect service conditions with the typical advantage of Alloy 625. Final selection should consider medium concentration, temperature, pressure, fabrication, availability and budget.

Service Requirement Why Alloy 617 Helps Common Product Form Buyer Note
High-temperature load-bearing components Solid-solution strengthening provides useful creep and stress-rupture strength at elevated temperatures. Plate, bar, forgings, tube and fabricated assemblies Specify operating temperature, design life, stress level and thermal cycles.
Oxidizing furnace atmospheres Chromium and aluminum support formation of a protective oxide scale. Sheet, plate, tube, wire and furnace hardware Confirm maximum temperature, atmosphere composition and thermal cycling.
Carburizing environments The high nickel and chromium contents provide useful resistance to carburization. Furnace tubes, trays, baskets, fixtures and sheet Specify carbon activity, temperature and expected exposure time.
Gas-turbine and combustion systems Alloy 617 combines oxidation resistance, thermal stability and elevated-temperature strength. Sheet, plate, bar, tube, forgings and fasteners Confirm fatigue, creep, inspection and surface-finish requirements.
Petrochemical processing equipment The alloy resists many hot process environments while maintaining fabrication capability. Pipe, tube, fittings, plate and welded assemblies Review the complete process chemistry, pressure and operating temperature.
Complex welded fabrication Alloy 617 has good weldability when suitable procedures and matching filler metals are used. Plate, sheet, pipe, tube and welding wire Control cleanliness, joint design, heat input and post-weld inspection.







Why Choose Us

Supply and quality support for Inconel 617

For ranking traffic, buyers need more than a data sheet. This section gives clear trust signals for procurement, engineering and quality teams.

STASTM / ASME / AMS / EN

Quotation can be matched to project standards and product form specifications.

MTEN10204 3.1 MTC

Heat number, chemistry, mechanical properties and inspection records can be supplied.

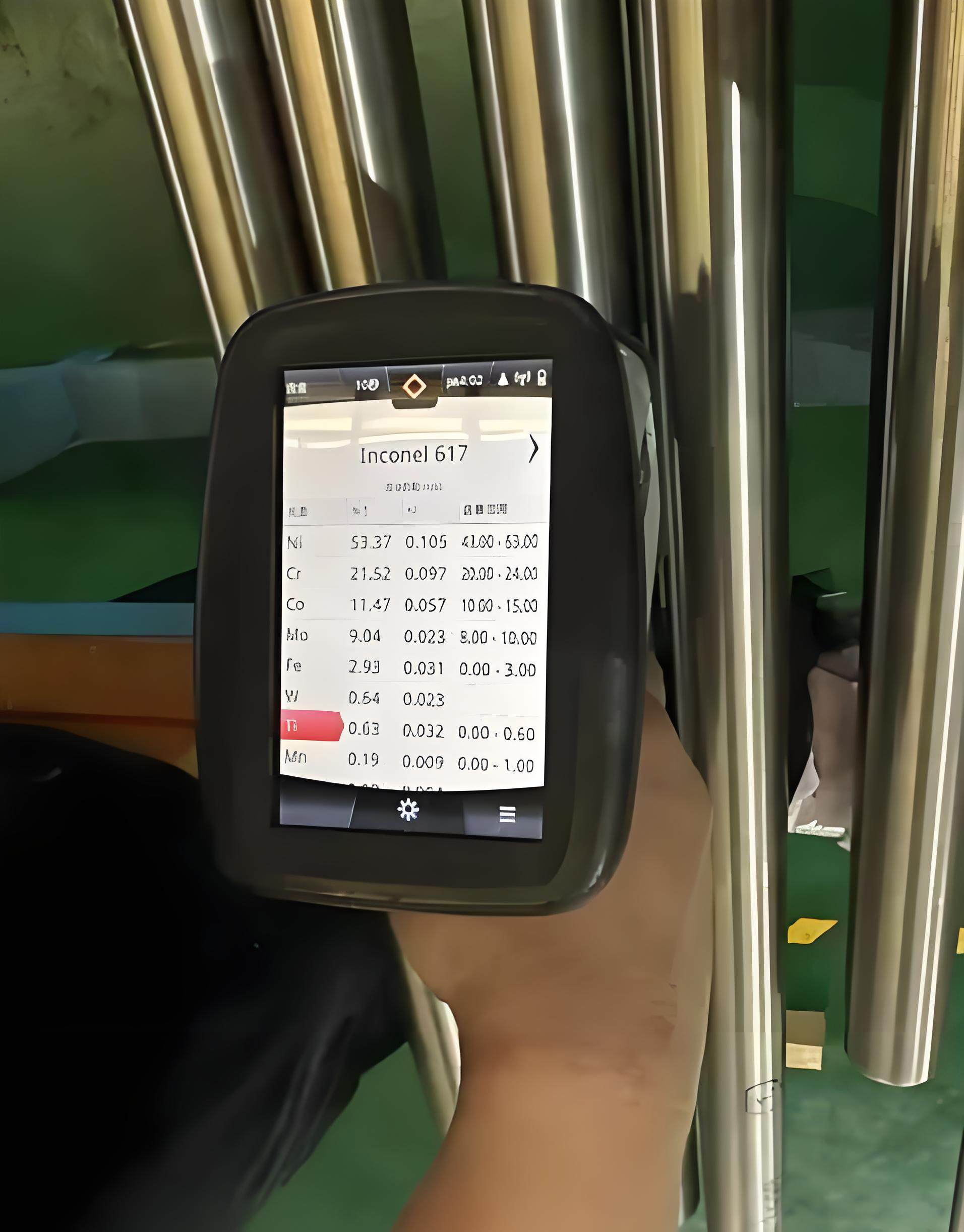

QCPMI & Inspection

PMI, UT, dimensional inspection, visual inspection and packing check are available.

CSCustom Size

Cutting, machining allowance, rough machining and drawing-based supply can be arranged.

EPExport Packing

Wooden case, bundle, waterproof protection and international shipping documents.

RFFast Technical Reply

Send grade, size, standard, quantity and destination for a practical quotation route.

Related Nickel Alloys

Compare nearby grades and product forms

Explore related grades and product forms for comparison.

FAQ

Inconel 617 questions from buyers

Find practical answers about procurement, standards, fabrication and industrial applications.

Inconel 617 is used for gas turbines, combustion systems, industrial furnaces, petrochemical equipment, heat-treatment fixtures, power-generation systems and other components exposed to high temperatures and mechanical loading.

Yes. UNS N06617 is the standardized UNS designation for Inconel 617. The alloy may also be identified as Alloy 617, Nickel Alloy 617, W.Nr. 2.4663 or NiCr23Co12Mo.

No. Alloy 617 is primarily strengthened by solid-solution effects from cobalt and molybdenum. It is normally supplied in a solution-annealed condition rather than precipitation hardened like Inconel X-750 or Alloy 718.

YSN128 can quote plate, sheet, strip, round bar, rod, wire, seamless pipe, tube, forgings, rings, flanges, fittings, fasteners and welding wire. Cutting, forming, machining and drawing-based supply can also be discussed.

Common specifications include ASTM B168 for plate and sheet, ASTM B166 for rod and bar, ASTM B167 for seamless pipe and tube, ASTM B564 for forgings, ASTM B366 for fittings, AMS 5887 and AMS 5888. Related ASME specifications may be used for pressure equipment.

Yes. Alloy 617 has good weldability using gas-tungsten arc, gas-metal arc and other suitable nickel-alloy welding processes. Matching filler metals such as ERNiCrCoMo-1 may be specified, subject to the approved welding procedure and service requirements.

Yes. EN10204 3.1 material certificates can be supplied on request, including heat number, chemical composition, mechanical test results, heat-treatment information and inspection records. Additional PMI, ultrasonic or corrosion testing can be arranged when specified.

Please send the product form, dimensions, quantity, applicable ASTM, ASME or AMS standard, delivery condition, inspection requirements, destination and service temperature. Drawings should be included for forgings, fittings and custom-fabricated components.
