Inconel 602CA

Inconel 602CA is commonly specified for high-temperature equipment requiring outstanding oxidation resistance, strong resistance to carburization and metal dusting, and excellent creep strength at temperatures up to approximately 1200 °C. The alloy is supplied in plate, sheet, strip, bar, pipe, tube, wire, forging and fabricated forms for industrial furnaces, radiant tubes, furnace muffles, petrochemical reformers, hydrogen and synthesis-gas systems, power-generation equipment and automotive exhaust components.





Download Inconel 602CA Datasheet Send Inquiry
Material Overview

Inconel 602CA material profile

A concise grade introduction for buyers who need to confirm composition, properties, standards, available forms and suitable applications before sending an inquiry.

Engineering profile

Inconel 602CA is commonly specified for high-temperature equipment requiring outstanding oxidation resistance, strong resistance to carburization and metal dusting, and excellent creep strength at temperatures up to approximately 1200 °C. The alloy is supplied in plate, sheet, strip, bar, pipe, tube, wire, forging and fabricated forms for industrial furnaces, radiant tubes, furnace muffles, petrochemical reformers, hydrogen and synthesis-gas systems, power-generation equipment and automotive exhaust components.

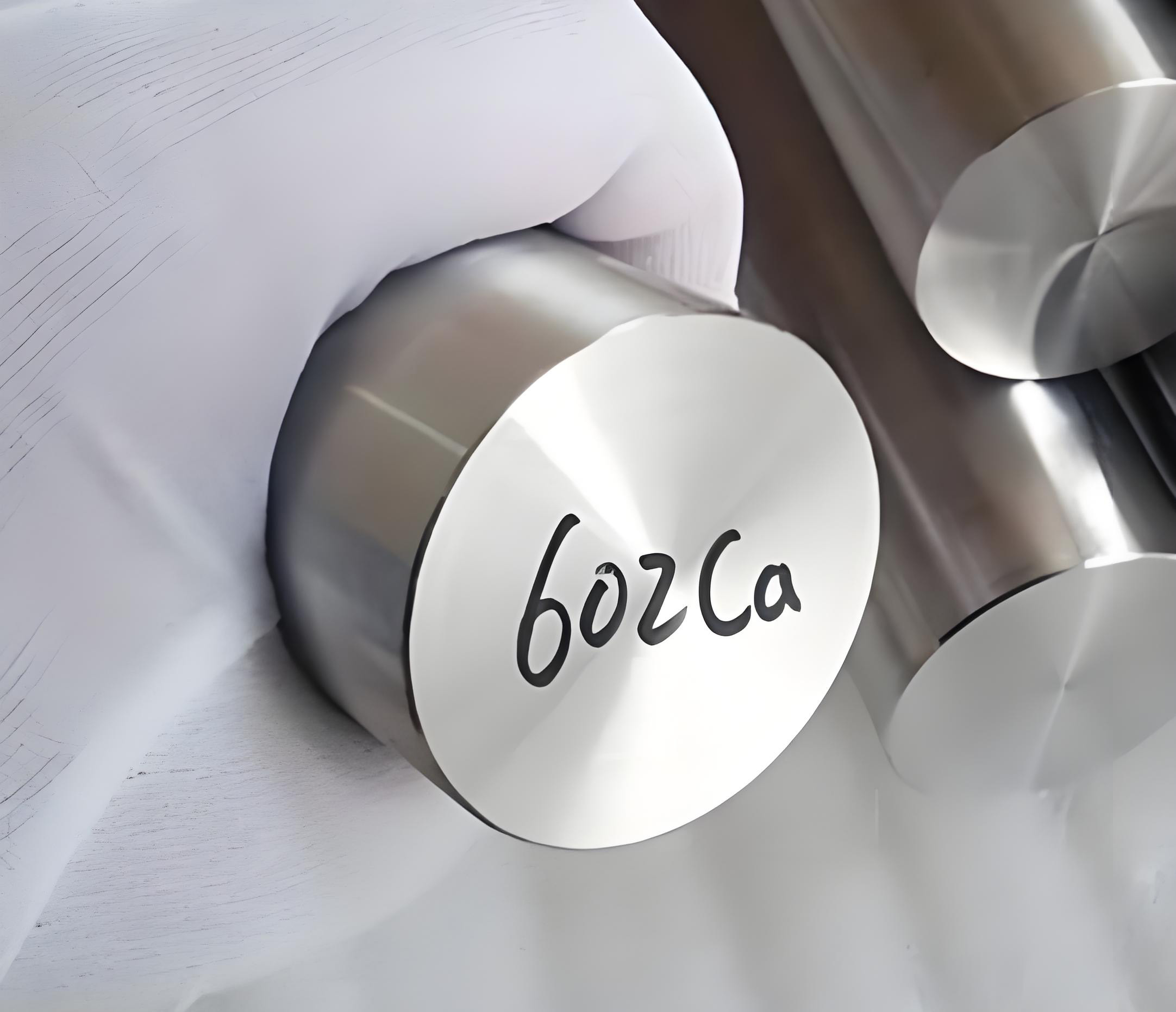

Inconel 602CA

Technical data on this page is for material selection reference. Final acceptance values should be confirmed by the purchase standard, heat treatment condition, product form, size and material test certificate.

Chemical Composition

Inconel 602CA composition range

The following table shows common limiting composition values for Alloy 625 / UNS N06625. Actual product chemistry is reported by heat on the material test certificate.

Element Symbol Typical Requirement Role in Alloy 602CA
Nickel Ni Balance Forms the stable austenitic matrix and supports corrosion resistance and high-temperature metallurgical stability.
Chromium Cr 24.0-26.0 Provides strong resistance to oxidation, carburization and high-temperature corrosion.
Iron Fe 8.0-11.0 Balances the alloy matrix and contributes to strength and processing characteristics.
Carbon C 0.15-0.25 Promotes carbide formation and provides excellent creep strength at elevated temperatures.
Aluminum Al 1.80-2.40 Forms a dense and adherent alumina scale for exceptional cyclic oxidation resistance.
Titanium Ti 0.10-0.20 Supports carbide control and high-temperature microstructural stability.
Yttrium Y 0.05-0.12 Improves adhesion and stability of the protective oxide layer during thermal cycling.
Zirconium Zr 0.01-0.10 Enhances creep strength and improves grain-boundary and oxide-scale stability.
Manganese Mn 0.15 max under common UNS requirements Controlled to maintain oxidation behavior and alloy cleanliness.
Silicon Si 0.50 max Controlled minor element affecting processing and high-temperature scale formation.
Copper Cu 0.10 max Controlled residual element.
Phosphorus P 0.020 max Controlled impurity for grain-boundary integrity and fabrication performance.
Sulfur S 0.010 max Strictly controlled impurity because sulfur can reduce high-temperature ductility and oxidation resistance.





Physical Properties

Key physical and thermal data

These values help customers compare density, thermal behavior, magnetic response and conductivity during early material selection.

Property Metric Value Imperial / Notes Condition
Density 7.93 g/cm3 Approx. 0.286 lb/in3 Approx. 25 °C
Melting Range 1340-1400 °C 2444-2552 °F Typical range
Specific Heat 447 J/kg·K 0.107 Btu/lb·°F Approx. 20 °C
Thermal Conductivity 10.4 W/m·K 72.2 Btu·in/ft2·h·°F Approx. 20 °C
Electrical Resistivity 123 µΩ·cm Approx. 74 ohm-cmil/ft Approx. 20 °C
Modulus of Elasticity Approx. 215 GPa Approx. 31.2 x 103 ksi Solution annealed, approx. 20 °C
Mean Thermal Expansion Approx. 14.15 x 10-6/K Approx. 7.86 x 10-6/°F 20-100 °C
Relative Magnetic Permeability 1.01 max Essentially non-magnetic Approx. 20 °C
Recommended Maximum Temperature Up to approximately 1200 °C Up to approximately 2192 °F Depends on atmosphere, stress and service cycle





Mechanical Properties

Room-temperature mechanical properties

Mechanical properties vary with product form, size, processing route and heat treatment. The table below summarizes commonly referenced nominal values for material selection.

Product Form / Condition Tensile Strength Yield Strength, 0.2% Elongation Hardness / Notes
Sheet and plate up to 50 mm – solution annealed 675 MPa min 270 MPa min 30% min Room-temperature minimum values
Strip up to 3 mm – solution annealed 675 MPa min 270 MPa min 30% min Room-temperature minimum values
Rod, bar and forgings up to 100 mm – solution annealed 675 MPa min 270 MPa min 30% min Room-temperature minimum values
Wire up to 12 mm – solution annealed 675 MPa min 270 MPa min 30% min Room-temperature minimum values
Solution annealed material at 500 °C 560 MPa min 180 MPa min 30% min Elevated-temperature short-term value
Solution annealed material at 600 °C 520 MPa min 175 MPa min 30% min Elevated-temperature short-term value
Solution annealed material at 700 °C 420 MPa min 170 MPa min 30% min Elevated-temperature short-term value





For pressure equipment, aerospace parts or project-specific acceptance, use the minimum requirements in the specified ASTM, ASME, AMS, EN or customer drawing rather than nominal values.

Standards & Specifications

Common Inconel 602CA standards by product form

YSN128 can quote Alloy 625 products according to ASTM, ASME, AMS, EN, DIN, ISO or customer drawing requirements. Certificate scope can be matched to the purchase order.

Product Form Common Standards Typical Supply Item Certificate / Inspection
Plate, Sheet and Strip ASTM B168 / ASME SB168, EN 10302, DIN 17742, DIN 17750, VdTÜV 540 Hot rolled plate, cold rolled sheet, strip, coil and cut blanks EN10204 3.1, chemical analysis, mechanical test and heat-treatment record
Rod and Bar ASTM B166 / ASME SB166, EN 10302, DIN 17742, DIN 17752, VdTÜV 540 Round bar, rod, billet and machined bar MTC, PMI, dimensional inspection and ultrasonic testing when required
Seamless Pipe and Tube ASTM B167 / ASME SB167 and project specifications Seamless pipe, process tube, radiant tube and heat-resistant tubing Hydrostatic or pneumatic test, eddy current test, PMI and MTC
Welded Pipe and Tube ASTM B516 / ASME SB516, ASTM B517 / ASME SB517 and project specifications Welded tube, large-diameter pipe and fabricated furnace tubing Weld inspection, radiographic or penetrant testing, dimensional inspection and MTC
Forgings and Flanges ASTM B564 / ASME SB564 and drawing-based specifications Rings, discs, blocks, shafts, forged flanges and custom pressure components Heat-treatment record, UT, PMI, dimensional inspection and MTC
Fittings and Fabricated Components ASTM B366 / ASME SB366 or project drawing and welding specification Elbows, tees, reducers, caps, furnace assemblies and special fittings PMI, dimensional inspection, NDT and MTC
Wire ASTM B166 / ASME SB166, DIN 17742 and customer specification Cold drawn wire, wire rod, coil and straightened wire Chemical analysis, tensile test, surface and dimensional inspection
Welding Products AWS A5.14 ERNiCrFe-12, EN ISO 18274 S Ni 6025 Matching welding wire, welding rod and overlay consumables Mill certificate, controlled chemistry and dimensional inspection





Available Product Forms

Inconel 602CA supply range

Review available product forms, size ranges, standards and delivery options for this alloy.

Form Common Size Range Delivery Condition Typical Applications Page Link
Pipe & Tube OD 6-1219 mm, wall thickness and schedule to specification Seamless, welded or fabricated, solution annealed, oxidized, descaled or pickled Radiant tubes, furnace piping, petrochemical reformers, syngas and hydrogen systems View Pipe & Tube
Round Bar Diameter 3-600 mm, lengths up to 12000 mm or custom cut lengths Hot rolled, forged, drawn, solution annealed, peeled, ground or polished Kiln rollers, furnace shafts, supports, fasteners and machined high-temperature parts View Round Bar
Sheet & Plate Thickness 0.5-80 mm, widths up to 2500 mm and custom lengths Hot rolled or cold rolled, solution annealed, oxidized, descaled or pickled Furnace muffles, heat shields, combustion chambers, trays and process equipment View Sheet & Plate
Strip & Foil Thickness 0.02-3 mm, slit widths and coil dimensions to specification Cold rolled, solution annealed, pickled or bright annealed High-temperature seals, flexible parts, catalyst components and automotive exhaust systems View Strip & Foil
Wire Diameter 0.1-19 mm, coil, spool, ring or straight-length supply Cold drawn, hot rolled, solution annealed, bright, oxidized or pickled High-temperature springs, mesh, supports, formed parts and fastener production View Wire
Fasteners Standard and custom bolts, nuts, screws, studs and washers from M3 to M100 Solution annealed, machined, rolled thread or drawing-based finish Industrial furnaces, heat-treatment systems, petrochemical plants and thermal equipment View Fasteners
Fittings NPS 1/2-48 in, ASME, EN and custom drawing dimensions Seamless, welded or fabricated, solution annealed and machined High-temperature process lines, reformer systems, furnace piping and exhaust equipment View Fittings
Flanges NPS 1/2-48 in, ASME B16.5, ASME B16.47, EN or custom specifications Forged or cut from plate, solution annealed, machined and inspected Furnace piping, chemical process systems, pressure equipment and high-temperature ducting View Flanges
Forgings Rings, discs, blocks, shafts, rollers and drawing-based components up to project dimensions Forged, solution annealed, oxidized, descaled, rough machined or finish machined Kiln rollers, furnace hardware, pressure parts, reformer components and heavy-duty supports View Forgings
Welding Wire Diameter 0.8-4.0 mm, spool, coil or straight welding rod Clean bright finish, precision drawn and controlled chemistry Joining Alloy 602CA, high-temperature repair welding and oxidation-resistant overlay View Welding Wire





Material Selection Guide

When to consider Inconel 602CA

This guide helps buyers connect service conditions with the typical advantage of Alloy 625. Final selection should consider medium concentration, temperature, pressure, fabrication, availability and budget.

Service Requirement Why Alloy 602CA Helps Common Product Form Buyer Note
Continuous high-temperature service High carbon content and controlled carbide formation provide excellent creep strength, especially above 1000 °C. Plate, sheet, bar, tube and forgings Confirm operating stress, design life, atmosphere and maximum metal temperature.
Cyclic oxidation up to approximately 1200 °C Chromium, aluminum and yttrium promote a dense and adherent protective oxide layer that resists spalling during thermal cycling. Sheet, plate, strip, tube and fabricated furnace parts Specify heating and cooling rates, cycle frequency and furnace atmosphere.
Carburizing atmospheres The alloy provides strong resistance to carbon penetration and carburization in industrial furnace and petrochemical service. Radiant tube, furnace muffle, plate, bar and fittings Confirm carbon activity, temperature, pressure and gas composition.
Metal dusting conditions The protective alumina-rich scale helps reduce metal dusting attack in carbon-rich process gases. Pipe, tube, fittings and reformer components Review gas composition, temperature range and expected shutdown conditions.
Oxidizing and chlorinating media High chromium content supports resistance in selected oxidizing and oxidizing-chlorinating high-temperature environments. Plate, sheet, pipe, tube and fabricated assemblies Confirm chlorine level, oxygen potential, deposits and operating temperature.
Furnace and heat-treatment equipment Excellent scale adhesion and creep resistance support long service life in furnace muffles, radiant tubes, rollers and fixtures. Sheet, plate, tube, bar, forgings and fasteners Specify mechanical load, support spacing, thermal cycling and dimensional tolerances.
Welded high-temperature fabrication The alloy can be welded with matching ERNiCrFe-12 filler using controlled heat input and suitable nickel-alloy procedures. Plate, sheet, pipe, tube and fittings Control cleanliness and interpass temperature; service at 600-750 °C may require stabilization annealing.





Why Choose Us

Supply and quality support for Inconel 602CA

For ranking traffic, buyers need more than a data sheet. This section gives clear trust signals for procurement, engineering and quality teams.

STASTM / ASME / AMS / EN

Quotation can be matched to project standards and product form specifications.

MTEN10204 3.1 MTC

Heat number, chemistry, mechanical properties and inspection records can be supplied.

QCPMI & Inspection

PMI, UT, dimensional inspection, visual inspection and packing check are available.

CSCustom Size

Cutting, machining allowance, rough machining and drawing-based supply can be arranged.

EPExport Packing

Wooden case, bundle, waterproof protection and international shipping documents.

RFFast Technical Reply

Send grade, size, standard, quantity and destination for a practical quotation route.

Related Nickel Alloys

Compare nearby grades and product forms

Explore related grades and product forms for comparison.

FAQ

Inconel 602CA questions from buyers

Find practical answers about procurement, standards, fabrication and industrial applications.

Inconel 602CA is mainly used for radiant tubes, furnace muffles, rotary and shaft furnaces, kiln rollers, petrochemical reformers, hydrogen and synthesis-gas equipment, combustion components, automotive exhaust systems and other parts exposed to severe high-temperature oxidation or carburization.

Yes. UNS N06025 is the standardized UNS designation commonly associated with Alloy 602 CA. The material may also be identified as Inconel 602CA, W.Nr. 2.4633, NiCr25FeAlY or Nicrofer 6025 HT.

Alloy 602CA provides excellent oxidation resistance at temperatures up to approximately 1200 °C or 2192 °F. The practical design temperature depends on mechanical stress, furnace atmosphere, thermal cycling, component geometry and the required service life.

Alloy 602CA contains higher chromium, controlled high carbon and microalloying additions of yttrium and zirconium. These additions provide higher creep strength and improved cyclic oxidation, carburization and metal-dusting resistance in severe high-temperature service.

YSN128 can quote plate, sheet, strip, round bar, rod, wire, seamless or welded pipe and tube, forgings, flanges, fittings, fasteners and matching welding wire. Large dimensions, fabricated components, machining allowance and drawing-based supply can be discussed.

Common standards include ASTM B168 for plate, sheet and strip, ASTM B166 for rod, bar and wire, ASTM B167 for seamless pipe and tube, ASTM B516 and ASTM B517 for welded products, ASTM B564 for forgings and flanges, EN 10302, VdTÜV material data sheet 540 and the corresponding ASME specifications.

Yes. Alloy 602CA can be welded using suitable nickel-alloy procedures and matching filler metal such as AWS A5.14 ERNiCrFe-12 or EN ISO 18274 S Ni 6025. Joint surfaces must be clean, heat input should be controlled and the interpass temperature should generally remain below 120 °C.

Preheating is normally not required. However, welded components intended for prolonged service between approximately 600 and 750 °C may require stabilization annealing. The final heat-treatment procedure should be confirmed against the component design and project specification.

Yes. EN10204 3.1 material certificates can be supplied on request, including heat number, chemical composition, mechanical test results, heat-treatment condition and applicable inspection records.

Please send the grade or UNS number, product form, dimensions, quantity, applicable standard, delivery condition, service temperature, furnace or process atmosphere, certificate requirements and destination. Drawings, welding requirements and additional inspection requirements are also welcome.
